LTC4371IMS#PBF - Analog Devices

Description: Power Management Specialized - PMIC Dual Negative Voltage Ideal Diode-OR Controller

Download LTC4371IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

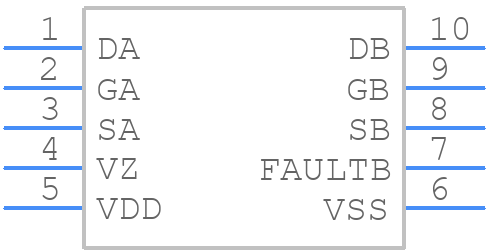

Symbol
LTC4371IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4371IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 10-Lead Plastic MSOP
click to zoom
3D Models
LTC4371IMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 10-Lead Plastic MSOP
click to zoom

LTC4371IMS#PBF Details

  • Manufacturer Part Number:

    LTC4371IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    WINDOW VOLTAGE DETECTOR

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    9.5 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    12.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC4371IMS#PBF Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths. Avoid routing sensitive analog signals near the switching node.
  • Choose an inductor with a high saturation current rating, low DC resistance, and a high self-resonant frequency. The inductor value should be between 1.5μH to 3.3μH, and the inductor should be able to handle the peak current of the converter.
  • The maximum ambient temperature range for the LTC4371IMS#PBF is -40°C to 125°C. However, the device can operate up to 150°C with derating.
  • Ensure that the output capacitor has a low ESR, and the output voltage is within the recommended range. Also, add a small capacitor (e.g., 10nF) between the VCC pin and GND to filter out noise.
  • Yes, the LTC4371IMS#PBF can be used in a synchronous rectification configuration. However, this requires additional external components and careful PCB layout to minimize parasitic inductance and ensure proper switching.
