LTC4372CMS8#TRPBF - Analog Devices

Description: Low Quiescent Current Ideal Diode Controller

Download LTC4372CMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

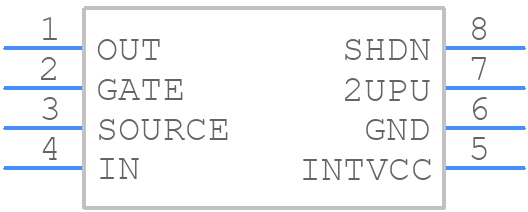

LTC4372CMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4372CMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom
3D Models
LTC4372CMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 8-Lead Plastic MSOP
click to zoom

LTC4372CMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC4372CMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4372CMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4372CMS8#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, and the output capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 47uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The maximum ambient temperature for reliable operation of the LTC4372CMS8#TRPBF is 85°C. However, the device can operate up to 125°C with derating. It's essential to ensure that the device is properly cooled and the thermal design is adequate to prevent overheating.
  • To troubleshoot issues with the LTC4372CMS8#TRPBF, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are correctly selected. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
  • Yes, the LTC4372CMS8#TRPBF is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing practices, including using a reliable PCB design, selecting high-quality components, and ensuring adequate thermal design and cooling.
