LTC4372IDD#TRPBF - Analog Devices

Description: Low Quiescent Current Ideal Diode Controller

Download LTC4372IDD#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

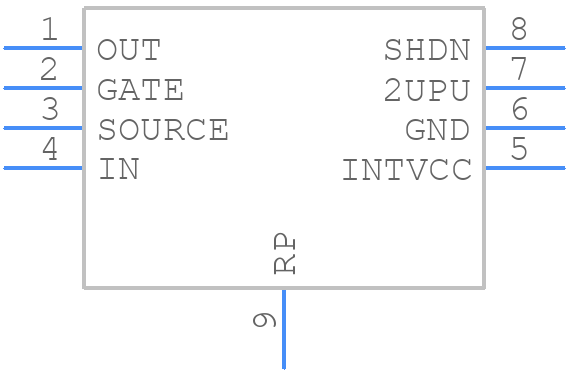

LTC4372IDD#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4372IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC4372IDD#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DD Package 8-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC4372IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC4372IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1698

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.12,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4372IDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4372 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A 10uF to 22uF ceramic capacitor is a good starting point. The output capacitor should have a low ESR and be rated for the maximum output voltage. A 10uF to 22uF ceramic capacitor is a good starting point. The capacitor values can be adjusted based on the specific application requirements.
  • The LTC4372 is rated for operation from -40°C to 125°C. However, the device may not be able to deliver its full performance at the extreme temperatures. It's recommended to derate the device's performance based on the ambient temperature.
  • The LTC4372 has a built-in overvoltage protection feature that can be enabled by connecting the OV pin to a voltage divider that sets the overvoltage threshold. The device will shut down when the input voltage exceeds the set threshold.
  • Yes, the LTC4372 is a high-reliability device that is suitable for use in high-reliability applications. It has a high MTBF (mean time between failures) and is manufactured using a robust process that ensures high reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4372IDD#TRPBF Overview

Use the download button to access the LTC4372IDD#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits
