LTC4373CMS8#TRPBF - Analog Devices

Description: Low Quiescent Current Ideal Diode Controller

Download LTC4373CMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

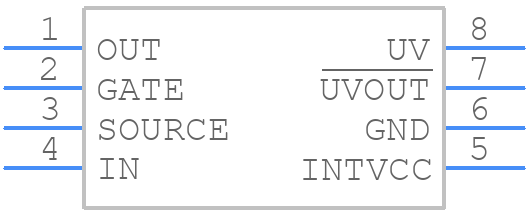

LTC4373CMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4373CMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)
click to zoom
3D Models
LTC4373CMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev G)
click to zoom

LTC4373CMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC4373CMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.191V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4373CMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4373CMS8#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 22uF, and the output capacitor should be a low-ESR ceramic capacitor with a value between 10uF to 47uF. The capacitor values and types should be chosen based on the specific application requirements and operating conditions.
  • The LTC4373CMS8#TRPBF is rated for operation up to 125°C ambient temperature, but the maximum ambient temperature for reliable operation depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
  • To troubleshoot issues with the LTC4373CMS8#TRPBF, start by checking the input voltage, output voltage, and current. Verify that the device is properly configured and that the input and output capacitors are properly selected. Use an oscilloscope to check for oscillations or noise on the input and output. Consult the datasheet and application notes for troubleshooting guidelines and tips.
  • Yes, the LTC4373CMS8#TRPBF is suitable for high-reliability applications. It's manufactured using a high-reliability process and is qualified to automotive and industrial standards. However, it's recommended to follow proper design and manufacturing practices to ensure the device operates reliably in the specific application.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4373CMS8#TRPBF Overview

Use the download button to access the LTC4373CMS8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits
