LTC4373HMS8#TRPBF - Analog Devices

Description: Low Quiescent Current Ideal Diode Controller

Download LTC4373HMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

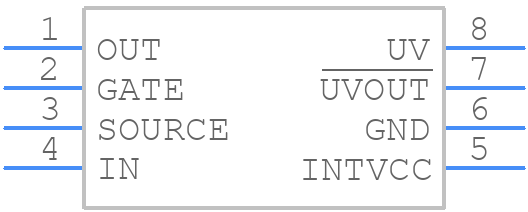

Symbol
LTC4373HMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4373HMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP_2021
click to zoom
3D Models
LTC4373HMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP_2021
click to zoom

LTC4373HMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC4373HMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.191V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4373HMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4373HMS8 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • The selection of input and output capacitors for the LTC4373HMS8 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be able to handle the input voltage and current, while the output capacitor should be able to handle the output voltage and current. A minimum capacitance of 10uF is recommended for both input and output capacitors.
  • The LTC4373HMS8 can operate in an ambient temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures, and it's recommended to derate the device's performance accordingly.
  • Troubleshooting issues with the LTC4373HMS8 involves checking the input and output voltages, currents, and temperatures. It's also recommended to check the device's pin voltages and currents, and to verify that the device is properly configured and powered. Additionally, checking the PCB layout and component selection can help identify potential issues.
  • The LTC4373HMS8 is a high-reliability device that is suitable for use in safety-critical applications. However, it's recommended to follow proper design and testing procedures to ensure that the device meets the specific requirements of the application. Additionally, it's recommended to consult with Analog Devices Inc for specific guidance on using the device in high-reliability or safety-critical applications.
