LTC4373IMS8#TRPBF - Analog Devices

Description: Low Quiescent Current Ideal Diode Controller

Download LTC4373IMS8#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

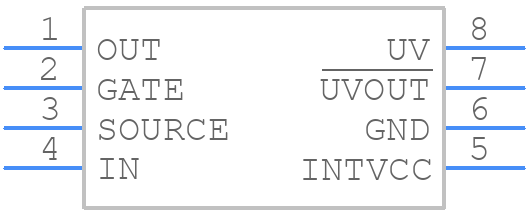

LTC4373IMS8#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4373IMS8#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Plastic MSOP_1
click to zoom
3D Models
LTC4373IMS8#TRPBF - Analog Devices - 3D model - Small Outline Packages - 8-Lead Plastic MSOP_1
click to zoom

LTC4373IMS8#TRPBF Details

  • Manufacturer Part Number:

    LTC4373IMS8#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    80 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.191V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC4373IMS8#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4373 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should have a low ESR and be rated for the maximum input voltage. A 10uF to 22uF ceramic capacitor is a good starting point. The output capacitor should be selected based on the output voltage and current requirements. A 10uF to 47uF ceramic capacitor with a low ESR is recommended.
  • The LTC4373 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation based on the ambient temperature to ensure reliable operation.
  • The LTC4373 has a built-in OVP feature that can be enabled by connecting the OV pin to a voltage divider that sets the OVP threshold. The OVP threshold should be set to a voltage higher than the maximum input voltage to ensure reliable operation.
  • The recommended input voltage range for the LTC4373 is 2.9V to 5.5V, but the device can operate from 2.7V to 5.5V. However, the device's performance and efficiency may be affected at lower input voltages.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4373IMS8#TRPBF Overview

Use the download button to access the LTC4373IMS8#TRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
