LTC4376HDHD#WTRPBF - Analog Devices

Description: 7A Ideal Diode with Reverse Input Protection

Download LTC4376HDHD#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

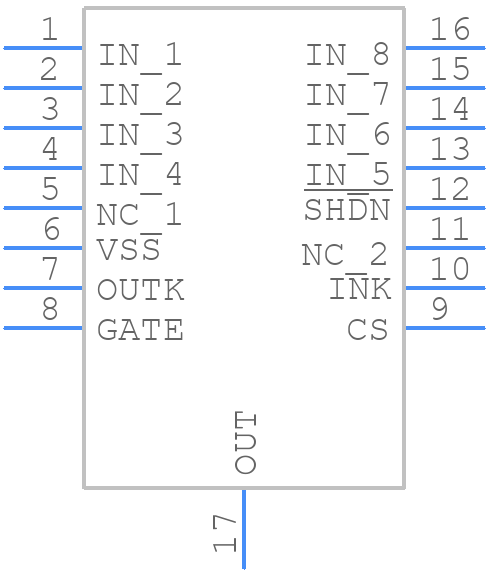

Symbol
LTC4376HDHD#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC4376HDHD#WTRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DHD Package 16-Lead Plastic DFN (5mm × 4mm)
click to zoom
3D Models
LTC4376HDHD#WTRPBF - Analog Devices - 3D model - Small Outline No-lead - DHD Package 16-Lead Plastic DFN (5mm × 4mm)
click to zoom

LTC4376HDHD#WTRPBF Details

  • Manufacturer Part Number:

    LTC4376HDHD#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1707

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-08-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N16

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC16,.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.25 mA

  • Supply Voltage-Max (Vsup):

    40 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    4 mm

LTC4376HDHD#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4376HDHD#WTRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
  • The selection of input and output capacitors depends on the specific requirements of your application. For the LTC4376HDHD#WTRPBF, a low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor, and a low-ESR ceramic capacitor with a value of 10uF to 47uF is recommended for the output capacitor. The capacitor's voltage rating should be at least 1.5 times the maximum input voltage.
  • The LTC4376HDHD#WTRPBF has an operating temperature range of -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to derate the device's power dissipation at higher ambient temperatures to ensure reliable operation.
  • The LTC4376HDHD#WTRPBF has a power-on reset (POR) circuit that ensures the device is properly powered up and powered down. The POR circuit monitors the input voltage and ensures that the device is fully powered up before enabling the output. To ensure proper power-up and power-down, it's recommended to follow the power-up and power-down sequencing guidelines in the datasheet.
  • The recommended input voltage range for the LTC4376HDHD#WTRPBF is 4.5V to 38V, but the device can operate with input voltages as low as 4V and as high as 40V. However, the device's performance and efficiency may be affected at input voltages outside the recommended range.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4376HDHD#WTRPBF Overview

Use the download button to access the LTC4376HDHD#WTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
