LTC4381ADKE-4#PBF - Analog Devices

Description: Low Quiescent Current eFuse with Surge Protection

Download LTC4381ADKE-4#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

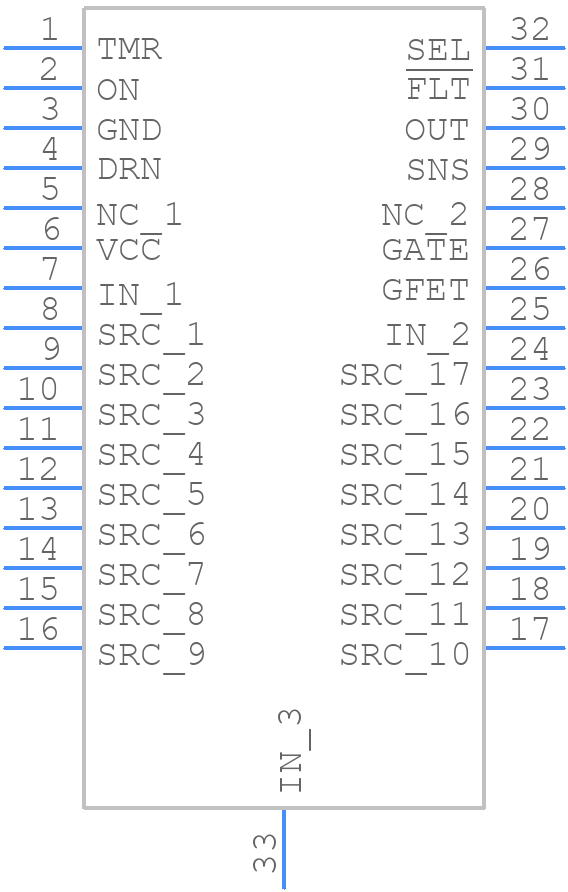

Symbol
LTC4381ADKE-4#PBF - Analog Devices - PCB symbol
click to zoom

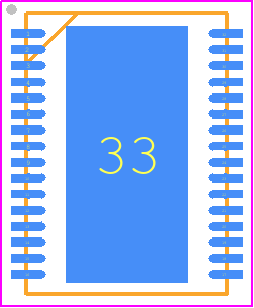

PCB Footprints
LTC4381ADKE-4#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DKE 32-Lead Plastic DFN (7mm × 5mm)
click to zoom
3D Models
LTC4381ADKE-4#PBF - Analog Devices - 3D model - Small Outline No-lead - DKE 32-Lead Plastic DFN (7mm × 5mm)
click to zoom

LTC4381ADKE-4#PBF Details

  • Manufacturer Part Number:

    LTC4381ADKE-4#PBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • Package Description:

    DFN-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    LFCSP:LEADFRM CHIP SCALE

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2021-04-15

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Additional Feature:

    AUTOMATIC RETRY

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INPUT FAULT PROTECTION CONTROLLER

  • JESD-30 Code:

    R-PDSO-N32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    solcc32,.2,16

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.03 mA

  • Supply Voltage-Max (Vsup):

    72 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

LTC4381ADKE-4#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC4381 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a separate analog and digital ground plane to minimize noise coupling.
  • The input and output capacitors should be chosen based on the specific application requirements. For the input capacitor, a low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. For the output capacitor, a low-ESR ceramic or film capacitor with a value between 10uF to 100uF is recommended. The capacitor values and types should be chosen to ensure stability and optimal performance.
  • The LTC4381 is rated for operation from -40°C to 125°C ambient temperature range. However, the device's performance and reliability may be affected at extreme temperatures, so it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance.
  • The LTC4381 has a specific power-up and power-down sequence that should be followed to ensure proper operation. The device should be powered up by applying the input voltage (VIN) before the enable pin (EN) is asserted. During power-down, the enable pin should be de-asserted before the input voltage is removed.
  • The recommended input voltage range for the LTC4381 is 2.9V to 5.5V. Operating the device outside of this range may affect its performance and reliability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC4381ADKE-4#PBF Overview

Use the download button to access the LTC4381ADKE-4#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC43, or try a keyword search, such as Power Management Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
