LTC491IS#PBF - Analog Devices

Description: Linear Technology LTC491IS#PBF Line Receiver, RS-422/ RS-485, 5 V, 14-Pin SOIC

Download LTC491IS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

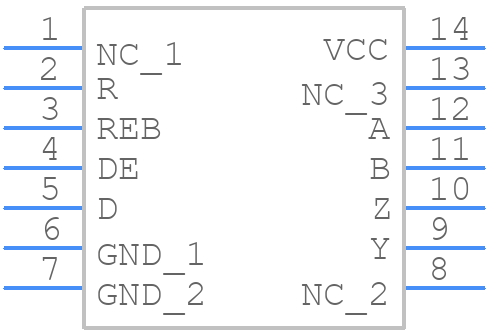

LTC491IS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC491IS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - LTC491IS#PBF
click to zoom
3D Models
LTC491IS#PBF - Analog Devices - 3D model - Small Outline Packages - LTC491IS#PBF
click to zoom

LTC491IS#PBF Details

  • Manufacturer Part Number:

    LTC491IS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PLASTIC, SOIC-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    05-08-1610 (S14)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    TRISTATABLE RECEIVER; 1 RECEIVER ACTIVE UNDER SHUTDOWN

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-422; EIA-485

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Length:

    8.65 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    150 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    50 ns

  • Width:

    3.9 mm
