LTC6655BHLS8-2.5#PBF - Analog Devices

Description: 0.25ppm Noise, Low Drift Precision References

Download LTC6655BHLS8-2.5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

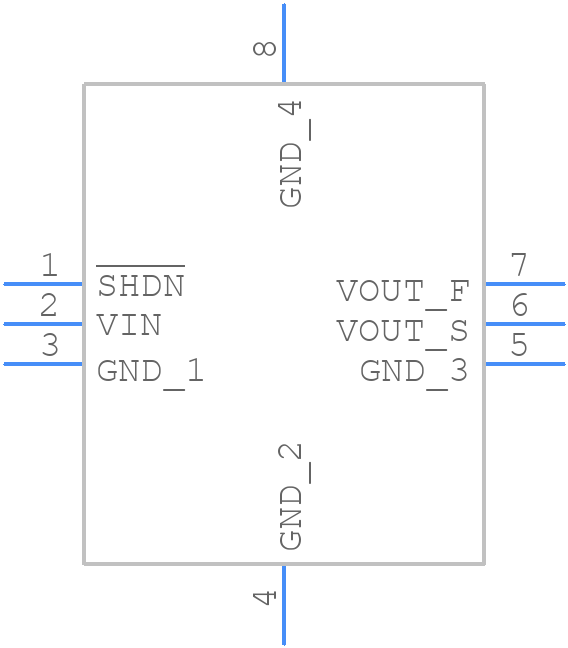

Symbol
LTC6655BHLS8-2.5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6655BHLS8-2.5#PBF - Analog Devices PCB footprint - Other - Other - LS8 PACKAGE 8-PIN LEADLESS CHIP CARRIER (5mm × 5mm)_2025-1
click to zoom
3D Models
LTC6655BHLS8-2.5#PBF - Analog Devices - 3D model - Other - LS8 PACKAGE 8-PIN LEADLESS CHIP CARRIER (5mm × 5mm)_2025-1
click to zoom

LTC6655BHLS8-2.5#PBF Details

  • Manufacturer Part Number:

    LTC6655BHLS8-2.5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1852

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-CQCC-N8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    2.500625 V

  • Output Voltage-Min:

    2.499375 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.55 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    2 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.025%

  • Width:

    5 mm

LTC6655BHLS8-2.5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6655BHLS8-2.5 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended capacitor values and types, and keep the output capacitor ESR low. Also, ensure the input voltage is within the recommended range, and the device is operated within the specified temperature range.
  • The maximum output current capability of the LTC6655BHLS8-2.5 is 20mA. However, it's recommended to limit the output current to 10mA for optimal performance and to prevent overheating.
  • Yes, the LTC6655BHLS8-2.5 can be used as a voltage reference for an ADC. Its low noise and high stability make it suitable for this application. However, ensure the ADC's input voltage range is compatible with the LTC6655BHLS8-2.5's output voltage.
  • The output voltage tolerance of the LTC6655BHLS8-2.5 can be calculated by considering the initial accuracy, temperature coefficient, and aging effects. Refer to the datasheet for the specific calculations and formulas.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6655BHLS8-2.5#PBF Overview

Use the download button to access the LTC6655BHLS8-2.5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC66, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
