LTC6655CHLS8-5#PBF - Analog Devices

Description: Series Voltage Reference IC Fixed 5V V ±0.05% 5 mA 8-CLCC (5x5) , 5V , 5 mA , -40°C ~ 125°C (TA)

Download LTC6655CHLS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

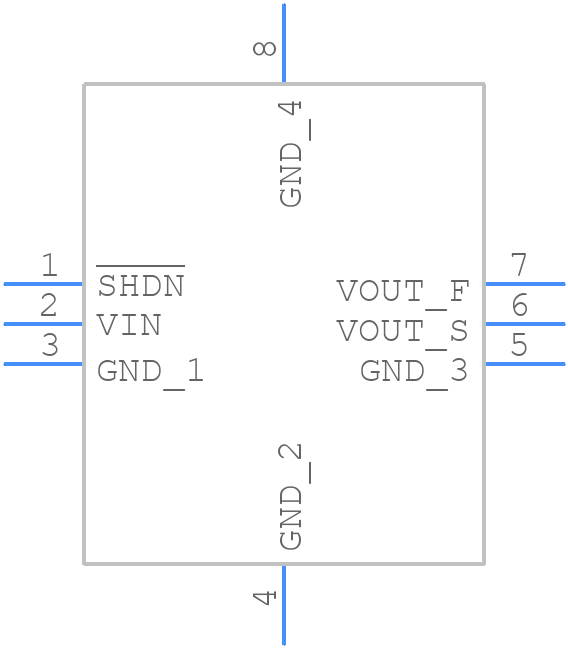

Symbol
LTC6655CHLS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6655CHLS8-5#PBF - Analog Devices PCB footprint - Other - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm)_2025-2
click to zoom
3D Models
LTC6655CHLS8-5#PBF - Analog Devices - 3D model - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm)_2025-2
click to zoom

LTC6655CHLS8-5#PBF Details

  • Manufacturer Part Number:

    LTC6655CHLS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1852

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    SEATED HT-CALCULATED

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-CQCC-N8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.0025 V

  • Output Voltage-Min:

    4.9975 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    HQCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG

  • Seated Height-Max:

    1.55 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    5.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.05%

  • Width:

    5 mm

LTC6655CHLS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6655CHLS8-5 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accurate voltage regulation, it's essential to follow proper layout and decoupling guidelines, use a high-quality output capacitor, and minimize noise injection into the feedback network. Additionally, ensure that the input voltage is within the recommended range, and the output current is within the specified limits.
  • The maximum allowed input voltage for the LTC6655CHLS8-5 is 12V. Exceeding this voltage may damage the device or affect its performance.
  • The LTC6655CHLS8-5 is rated for operation up to 125°C. However, it's essential to ensure proper thermal management, such as using a heat sink or a thermally conductive PCB, to prevent overheating and ensure reliable operation.
  • To troubleshoot issues with the LTC6655CHLS8-5, start by verifying the input voltage, output voltage, and output current. Check for proper PCB layout, decoupling, and noise reduction. Use an oscilloscope to inspect the output voltage ripple and noise. Consult the datasheet and application notes for guidance on troubleshooting common issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6655CHLS8-5#PBF Overview

Use the download button to access the LTC6655CHLS8-5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC66, or try a keyword search, such as Voltage References
