LTC6655LNBHLS8-5#PBF - Analog Devices

Description: Series Voltage Reference IC Fixed 5V V ±0.025% 5 mA 8-CLCC (5x5)

Download LTC6655LNBHLS8-5#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

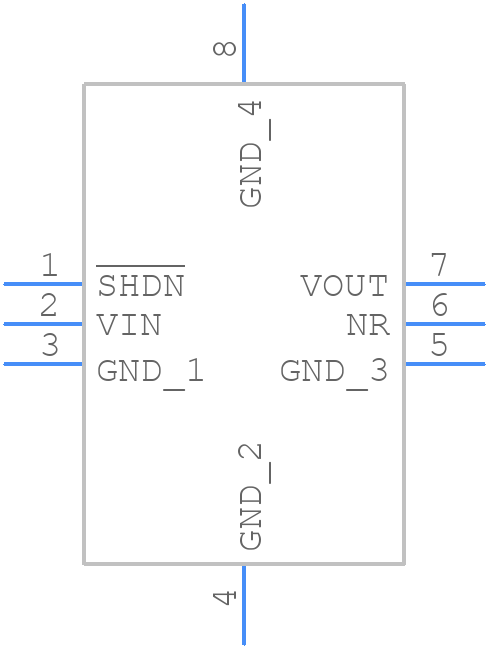

LTC6655LNBHLS8-5#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6655LNBHLS8-5#PBF - Analog Devices PCB footprint - Other - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm) (Reference LTC DWG # 05-08-1852 Rev B)
click to zoom
3D Models
LTC6655LNBHLS8-5#PBF - Analog Devices - 3D model - Other - LS8 Package 8-Pin Leadless Chip Carrier (5mm × 5mm) (Reference LTC DWG # 05-08-1852 Rev B)
click to zoom

LTC6655LNBHLS8-5#PBF Details

  • Manufacturer Part Number:

    LTC6655LNBHLS8-5#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LCC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1852

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-XQCC-N8

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.005 A

  • Output Voltage-Max:

    5.0012 V

  • Output Voltage-Min:

    4.99875 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    QCCN

  • Package Equivalence Code:

    LCC8,.2SQ

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.55 mm

  • Supply Current-Max (Isup):

    7.5 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    2 ppm/°C

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    QUAD

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.025%

  • Width:

    5 mm

LTC6655LNBHLS8-5#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6655LNBHLS8-5 involves keeping the input and output traces short and separate, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the datasheet's layout guidelines and application notes for more details.
  • To ensure stability, make sure to follow the datasheet's guidelines for output capacitance, input resistance, and feedback network design. Also, ensure that the device is operated within its recommended operating conditions, and that the input voltage is well-regulated. Additionally, consider adding a small capacitor (e.g., 10nF) between the output and ground to improve stability.
  • The maximum output current of the LTC6655LNBHLS8-5 is 20mA. However, the device can deliver higher currents for short periods of time. Refer to the datasheet's Absolute Maximum Ratings and Electrical Characteristics tables for more information.
  • Yes, the LTC6655LNBHLS8-5 can be used as a voltage reference for an ADC. Its low noise and high stability make it suitable for this application. However, ensure that the ADC's input voltage range is compatible with the LTC6655LNBHLS8-5's output voltage, and that the reference voltage is properly buffered and decoupled.
  • The output voltage tolerance of the LTC6655LNBHLS8-5 can be calculated by considering the initial accuracy, temperature coefficient, and aging effects. Refer to the datasheet's Electrical Characteristics table and the application notes for more information on how to calculate the output voltage tolerance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6655LNBHLS8-5#PBF Overview

Use the download button to access the LTC6655LNBHLS8-5#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC66, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
