LTC6802IG-2#3ZZTRPBF - Analog Devices

Description: 12 Channel Multicell Battery Monitor with Addressable Interface, Generaion 1

Download LTC6802IG-2#3ZZTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

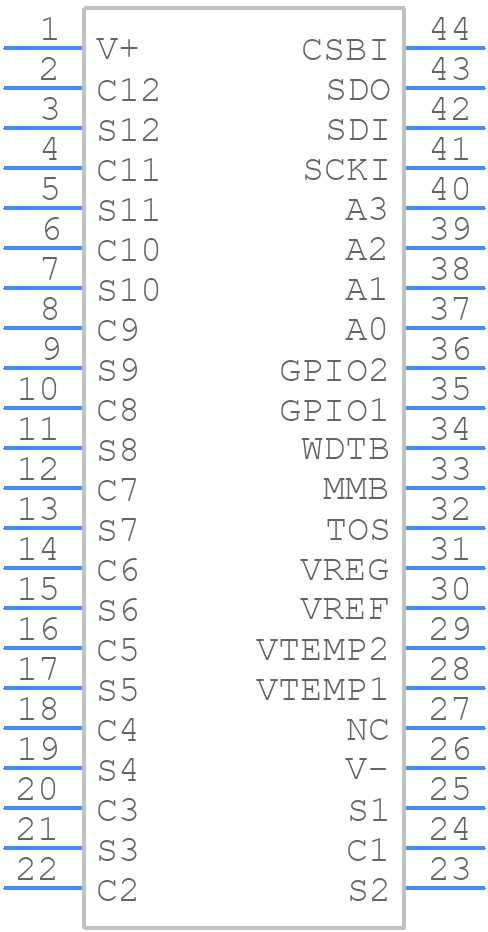

LTC6802IG-2#3ZZTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints

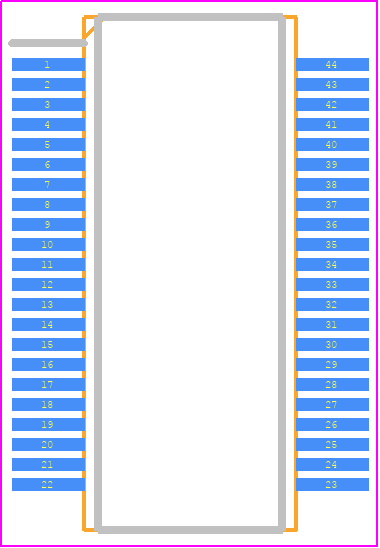

LTC6802IG-2#3ZZTRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev A)_2021
click to zoom
3D Models
LTC6802IG-2#3ZZTRPBF - Analog Devices - 3D model - Small Outline Packages - G Package 44-Lead Plastic SSOP (5.3mm) (Reference LTC DWG # 05-08-1754 Rev A)_2021
click to zoom

LTC6802IG-2#3ZZTRPBF Details

  • Manufacturer Part Number:

    LTC6802IG-2#3ZZTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    SSOP-44

  • Pin Count:

    44

  • Manufacturer Package Code:

    05-08-1754

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-30

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    3

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP44,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    50 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    43.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    5.3 mm

LTC6802IG-2#3ZZTRPBF Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the LTC6802IG-2 can be found in the application note AN106, which provides guidelines for proper PCB design and layout to ensure optimal performance and minimize noise.
  • The LTC6802IG-2 requires a one-time calibration process to ensure accurate voltage measurements. This involves connecting a known voltage source to the device and using the CAL pin to set the internal reference voltage. The calibration process is described in detail in the datasheet.
  • Up to 256 LTC6802IG-2 devices can be daisy-chained together using the SPI interface, allowing for the monitoring of up to 4096 individual battery cells.
  • The LTC6802IG-2 provides a cell balancing function that can be used to balance the voltage of individual battery cells. It also provides a charge/discharge control function that can be used to control external FETs for charging and discharging the battery cells.
  • The typical power consumption of the LTC6802IG-2 is around 1.5mA, making it suitable for use in battery-powered systems where power consumption is a concern.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6802IG-2#3ZZTRPBF Overview

Use the download button to access the LTC6802IG-2#3ZZTRPBF schematic symbol, PCB footprint, and 3D model.
