LTC695CN#PBF - Analog Devices

Description: Linear Technology LTC695CN#PBF, Processor Supervisor 4.5 → 4.75 V, WDT, Reset Input, 16-Pin PDIP

Download LTC695CN#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

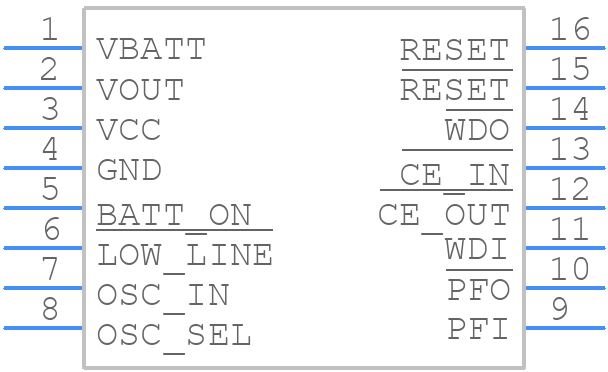

LTC695CN#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC695CN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom
3D Models
LTC695CN#PBF - Analog Devices - 3D model - Dual-In-Line Packages - 16-Lead PDIP (Narrow 0.300)
click to zoom

LTC695CN#PBF Details

  • Manufacturer Part Number:

    LTC695CN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, LEAD FREE, PLASTIC, DIP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1510 (N16)

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e3

  • Length:

    19.558 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.937 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC695CN#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC695CN involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The LTC695CN requires a bias voltage of 3.3V or 5V, depending on the application. Ensure that the bias voltage is clean and well-regulated, and that the device is properly decoupled with capacitors. The datasheet provides guidelines for biasing and decoupling the device.
  • The LTC695CN can handle clock frequencies up to 3.2GHz, but the maximum frequency depends on the specific application and the quality of the clock signal. The datasheet provides guidelines for clock signal quality and frequency planning.
  • The LTC695CN can be programmed using a 3-wire serial interface. The device has a 24-bit register that controls the output frequency, and the datasheet provides a detailed description of the register format and programming procedure.
  • The typical power consumption of the LTC695CN is around 350mW, but this can vary depending on the specific application and operating conditions. The datasheet provides a detailed power consumption table and guidelines for power supply design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC695CN#PBF Overview

Use the download button to access the LTC695CN#PBF schematic symbol, PCB footprint, and 3D model.
