LTC7860HMSE#PBF footprint, schematic symbol and 3D model by Analog Devices

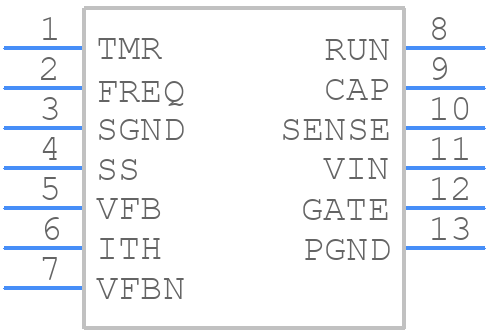

Symbol

click to zoom

PCB Footprints

LTC7860HMSE#PBF - Analog Devices PCB footprint - Other - Other - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad_2026-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC7860HMSE#PBF
Part Number LTC7860HMSE#PBF
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad_2026-1
Released Date Jul 26, 2026
Last Modified Date Jul 26, 2026 1:32 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC7860HMSE#PBF Details

Manufacturer Part Number:
LTC7860HMSE#PBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-12
Pin Count:
12
Manufacturer Package Code:
05-08-1666
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Adjustable Threshold:
YES
Analog IC - Other Type:
INPUT FAULT PROTECTION CONTROLLER
JESD-30 Code:
R-PDSO-G12
JESD-609 Code:
e3
Length:
4.039 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
150 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Equivalence Code:
TSSOP12,.19
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
60 V
Supply Voltage-Min (Vsup):
3.5 V
Supply Voltage-Nom (Vsup):
12 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
3 mm

LTC7860HMSE#PBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC7860HMSE involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended. The datasheet provides a recommended PCB layout, but it's also a good idea to consult with experienced engineers and follow general high-frequency PCB design guidelines.
The choice of input and output capacitors for the LTC7860HMSE depends on the specific application and operating frequency. In general, low-ESR capacitors with a high self-resonant frequency (SRF) are recommended. For the input capacitor, a 10uF to 22uF ceramic capacitor with an X7R or X5R dielectric is a good choice. For the output capacitor, a 10uF to 47uF ceramic capacitor with an X7R or X5R dielectric is suitable. It's also important to consider the capacitor's voltage rating, temperature coefficient, and tolerance.
The LTC7860HMSE has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To ensure the LTC7860HMSE is properly biased and configured, follow the recommended application circuit and biasing scheme in the datasheet. Pay attention to the input and output voltage ranges, current limits, and impedance matching requirements. Also, consult with experienced engineers and perform thorough simulations and testing to validate the design.
Common pitfalls to avoid when designing with the LTC7860HMSE include inadequate PCB layout, poor input and output filtering, insufficient decoupling, and incorrect biasing. Additionally, failing to consider the device's thermal management, electromagnetic interference (EMI), and electromagnetic compatibility (EMC) requirements can lead to design failures.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LTC7860HMSE#PBF Overview

Use the download button to access the LTC7860HMSE#PBF schematic symbol and PCB footprint.
