LTM-8522E - Lite-On

Description: LED Displays & Accessories Orange

Download LTM-8522E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

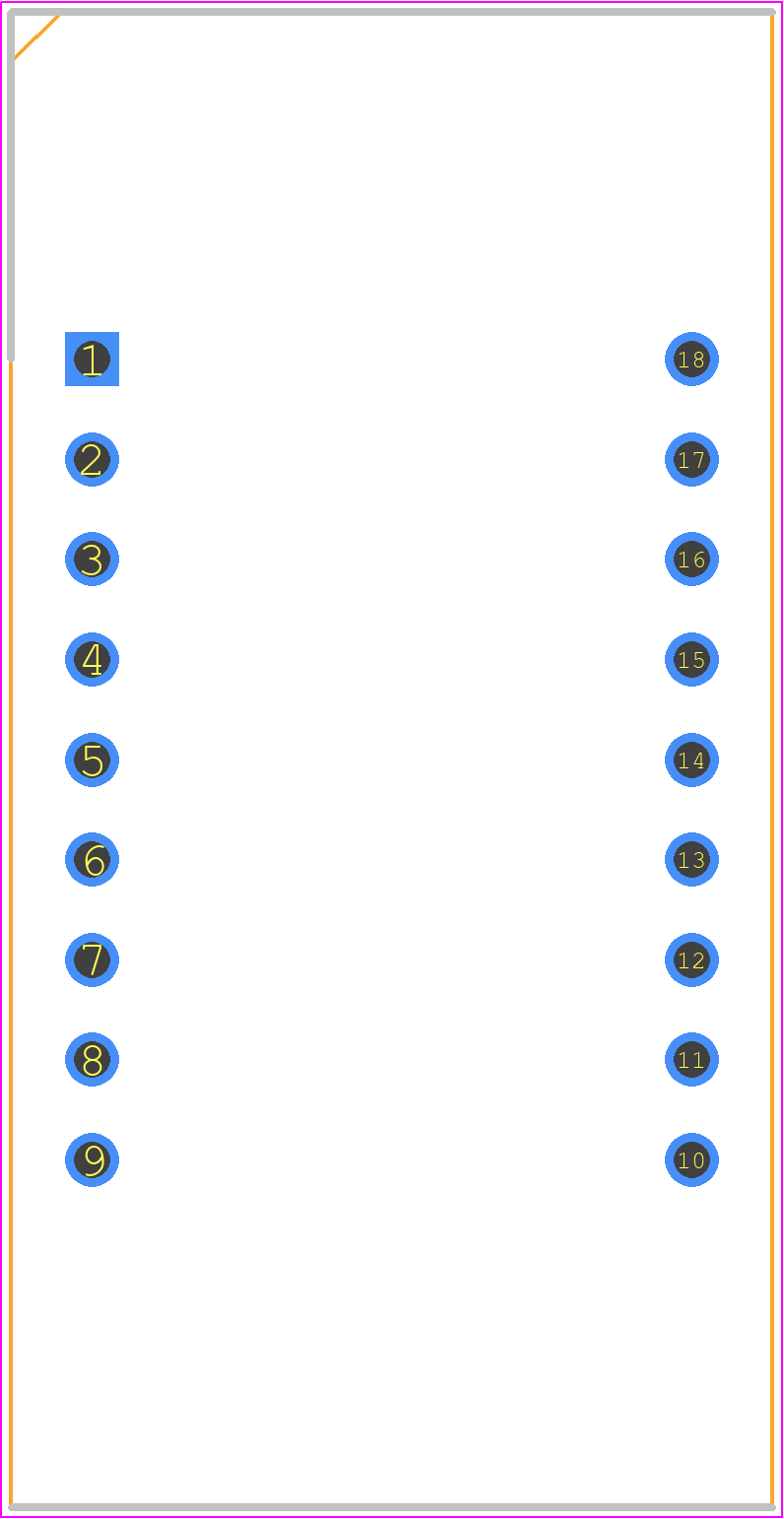

LTM-8522E - Lite-On PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - LTM-8*522E
click to zoom
3D Models
LTM-8522E - Lite-On  - 3D model - Dual-In-Line Sockets - LTM-8*522E
click to zoom

LTM-8522E Details

  • Manufacturer Part Number:

    LTM-8522E

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8541.40.20.00

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    TTL COMPATIBLE

  • Color:

    ORANGE

  • Color@Wavelength:

    Orange

  • Configuration:

    COMPLEX

  • Display Height:

    14.22 mm

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    60 °C

  • Operating Temperature-Min:

    -20 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    630 nm
