A good PCB layout for the LTM2894HY involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to minimize the length of the traces connecting the device to the power supply and other components.
To ensure accurate temperature measurement, it's essential to calibrate the device, use a high-accuracy voltage reference, and minimize thermal gradients on the PCB. Additionally, the device should be placed close to the temperature sensor, and the temperature sensor should be thermally connected to the device being measured.
The maximum cable length for the SPI interface of the LTM2894HY depends on the clock frequency and the signal integrity requirements. As a general guideline, a cable length of up to 10 inches (25 cm) is recommended for clock frequencies up to 10 MHz. For longer cable lengths, it's recommended to use a repeater or a buffer to maintain signal integrity.
Yes, the LTM2894HY is designed to operate in high-vibration environments. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Additionally, the PCB should be designed to withstand the vibration and shock requirements of the application.
To troubleshoot issues with the LTM2894HY, start by verifying the power supply and clock signals, and then check the device's configuration and register settings. Use a logic analyzer or oscilloscope to monitor the SPI interface and verify that the device is receiving the correct commands and data. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines and contact Analog Devices' technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTM2894HY#PBF Overview

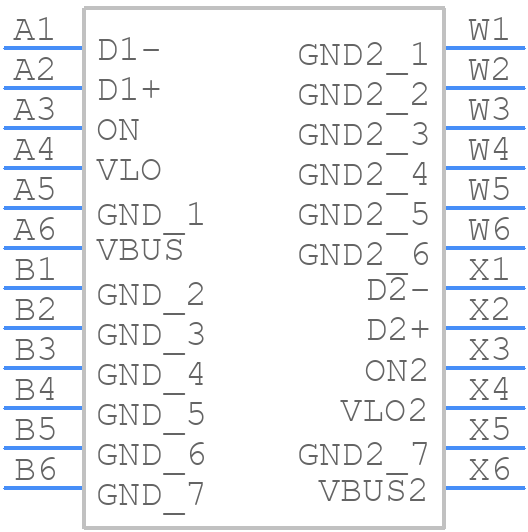

Use the download button to access the LTM2894HY#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTM28,
or try a keyword search, such as Line Driver or Receivers
About Analog Devices
Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries.
Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
