LTM2894IY#PBF - Analog Devices

Description: USB Digital Isolator 7500Vrms 1 Channel 12Mbps 50kV/µs CMTI 24-BGA

Download LTM2894IY#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

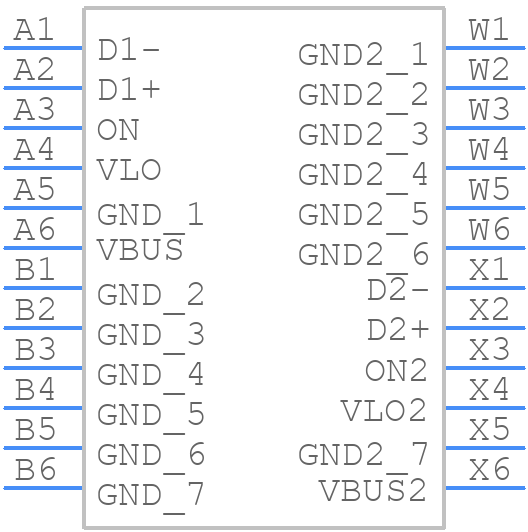

Symbol
LTM2894IY#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTM2894IY#PBF - Analog Devices PCB footprint - Other - Other - BGA Package 24-Lead (22mm × 6.25mm × 2.06mm)-1
click to zoom
3D Models
LTM2894IY#PBF - Analog Devices - 3D model - Other - BGA Package 24-Lead (22mm × 6.25mm × 2.06mm)-1
click to zoom

LTM2894IY#PBF Details

  • Manufacturer Part Number:

    LTM2894IY#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    BGA-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    05-08-1991

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Differential Output:

    YES

  • Driver Number of Bits:

    1

  • High Level Input Current-Max:

    0.000001 A

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    GENERAL PURPOSE

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    22 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Out Swing-Min:

    2.5 V

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA24,21X6,39

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY

  • Peak Reflow Temperature (Cel):

    260

  • Receive Delay-Max:

    300 ns

  • Receiver Number of Bits:

    1

  • Seated Height-Max:

    2.31 mm

  • Supply Current-Max:

    9 mA

  • Supply Voltage-Max:

    36 V

  • Supply Voltage-Min:

    4.4 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    HYBRID

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    300 ns

  • Width:

    6.25 mm

LTM2894IY#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTM2894IY#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces between the device and the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the LTM2894IY#PBF, use a high-quality power supply with low noise and ripple, and decouple the device with a 10uF ceramic capacitor and a 1uF ceramic capacitor in parallel, placed as close to the device as possible.
  • The LTM2894IY#PBF has an operating temperature range of -40°C to 125°C, but it's recommended to operate the device within a temperature range of 0°C to 85°C for optimal performance and reliability.
  • To troubleshoot issues with the LTM2894IY#PBF, start by checking the power supply and decoupling, then verify the input and output signals, and finally, check the device's temperature and operating conditions. Use an oscilloscope and a logic analyzer to debug the device's behavior.
  • The LTM2894IY#PBF is a high-reliability device, but it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific requirements of the application.
