LTM9011CY-14#PBF - Analog Devices

LTM9011CY-14#PBF Details

• Manufacturer Part Number:

  LTM9011CY-14#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

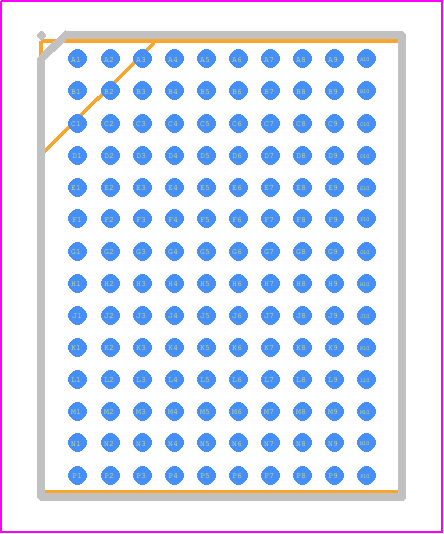

• Package Description:

  BGA-140

• Pin Count:

  140

• Manufacturer Package Code:

  05-08-1849

• Country Of Origin:

  Malaysia

• ECCN Code:

  3A991.C.3

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Analog Input Voltage-Max:

  2 V

• Analog Input Voltage-Min:

  -2 V

• Converter Type:

  ADC, PROPRIETARY METHOD

• JESD-30 Code:

  R-PBGA-B140

• JESD-609 Code:

  e1

• Length:

  11.25 mm

• Linearity Error-Max (EL):

  0.025%

• Moisture Sensitivity Level:

  3

• Number of Analog In Channels:

  8

• Number of Bits:

  14

• Number of Functions:

  1

• Number of Terminals:

  140

• Operating Temperature-Max:

  70 °C

• Output Bit Code:

  OFFSET BINARY, 2S COMPLEMENT BINARY

• Output Format:

  SERIAL, PARALLEL, WORD

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  FBGA

• Package Equivalence Code:

  BGA140,10X14,32

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, FINE PITCH

• Qualification Status:

  Not Qualified

• Sample Rate:

  125 MHz

• Sample and Hold / Track and Hold:

  SAMPLE

• Seated Height-Max:

  2.87 mm

• Supply Current-Max:

  632 mA

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  9 mm
