LTV-208 footprint, schematic symbol and 3D model by Lite-On

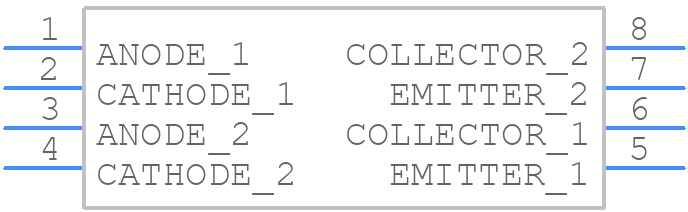

Symbol

PCB Footprints

3D Models

LTV-208 Details

The recommended operating temperature range for LTV-208 is -40°C to 125°C.
To ensure reliability, it is recommended to derate the power dissipation of the LTV-208 at high temperatures. A derating curve can be found in the datasheet or application notes.
The maximum allowable voltage for the LTV-208 is 250V. Exceeding this voltage may cause damage to the device.
ESD protection is crucial for the LTV-208. It is recommended to use ESD protection devices, such as TVS diodes, and follow proper handling and storage procedures to prevent ESD damage.
A recommended PCB layout for the LTV-208 includes using a solid ground plane, minimizing trace lengths, and using a decoupling capacitor to reduce noise and improve stability.

Expert Contribution

System Verified

Community Approved

Use the download button to access the LTV-208 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTV-2, or try a keyword search, such as Optocoupler
