LTV-244 - Lite-On

Description: 50mA 400mV@2.4mA,8mA 80V 6V AC,DC SOP-16-4.4mm Transistor, Photovoltaic Output Optoisolators RoHS

Download LTV-244 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this LTV-244 model

Email notifications will be applied after download.

Send part feedback

Symbol

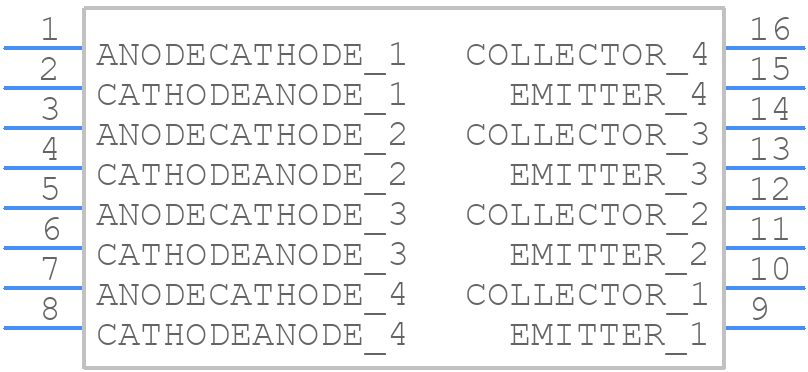

LTV-244 - Lite-On - PCB symbol

PCB Footprints

LTV-244 - Lite-On PCB footprint - Other - Other - LTV-244-2

3D Models

LTV-244 - Lite-On - 3D model - Other - LTV-244-2

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTV-244
Part Number LTV-244
Manufacturer Lite-On
Pin Count 16
Part Category Phototransistor
Package Category Other
Footprint Name Other - LTV-244-2
Released Date Sep 17, 2022
Last Modified Date Nov 24, 2025 10:08 AM UTC
Pinout / Pin List Click Here (Member Only)

LTV-244 Details

Manufacturer Part Number:
LTV-244
Manufacturer:
Lite-On Semiconductor Corporation
