A recommended PCB layout for optimal thermal performance of the LTV-824S includes a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. Additionally, it is recommended to use a 2-3 layer PCB with a solid ground plane to reduce thermal resistance.
To ensure the reliability of the LTV-824S in high-temperature applications, it is recommended to follow the recommended operating conditions, use a heat sink or thermal interface material, and ensure good airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement thermal protection mechanisms.
The LTV-824S has built-in ESD protection, but it is still recommended to follow standard ESD handling procedures when handling the device. This includes using an ESD wrist strap or mat, storing the device in an anti-static bag, and avoiding touching the device's pins or leads.
The LTV-824S is not hermetically sealed, so it is not recommended for use in high-humidity environments. However, if it is necessary to use the device in a humid environment, it is recommended to apply a conformal coating to protect the device from moisture.
The recommended storage condition for the LTV-824S is in a dry, cool place, away from direct sunlight and moisture. The device should be stored in its original packaging or an anti-static bag to prevent damage from ESD or moisture.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LTV-824S Overview

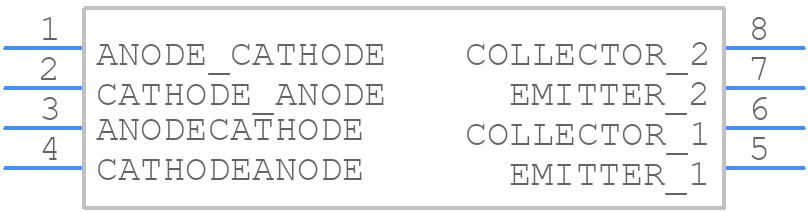

Use the download button to access the LTV-824S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTV-8,
or try a keyword search, such as Optocoupler
