LTV-827S-B footprint, schematic symbol and 3D model by Lite-On

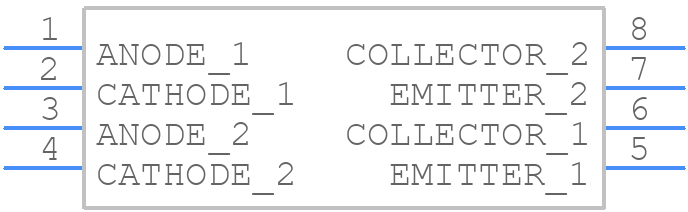

Symbol

PCB Footprints

3D Models

LTV-827S-B Details

The recommended operating temperature range for LTV-827S-B is -40°C to 85°C, but it can withstand storage temperatures from -40°C to 150°C.
To ensure reliability in high-temperature applications, it's essential to follow the recommended derating curves for the device, and consider using a heat sink or thermal management system to keep the junction temperature below 125°C.
The maximum allowable voltage for the LTV-827S-B is 5.5V, and exceeding this voltage can cause permanent damage to the device.
To prevent electrostatic discharge (ESD) damage, it's essential to follow proper handling and storage procedures, such as using anti-static wrist straps, mats, and packaging materials, and ensuring that the device is properly grounded during assembly and testing.
The typical response time of the LTV-827S-B is around 10-20 microseconds, but this can vary depending on the specific application and operating conditions.

System Verified

Use the download button to access the LTV-827S-B schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like LTV-8, or try a keyword search, such as Optocoupler

Showing 0 results

Image	Part Number	Model
	LTV-827SB Lite-On Semiconductor Corporation Transistor Output Optocoupler, 2-Element, 5000V Isolation
	LTV827SA-TA1 Lite-On Semiconductor Corporation 2 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-8
	LTV827SB-TA Lite-On Semiconductor Corporation 2 CHANNEL TRANSISTOR OUTPUT OPTOCOUPLER, DIP-8
	LTV-827SA-TA1 Lite-On Semiconductor Corporation Transistor Output Optocoupler, 2-Element, 5000V Isolation
For a full list of alternate parts for LTV-827S-B, check out Findchips.com
