LTV-827S-TA - Lite-On

Description: Transistor Output Optocouplers Optocoupler

Download LTV-827S-TA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

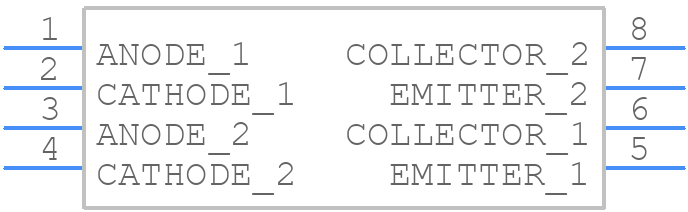

LTV-827S-TA - Lite-On - PCB symbol
click to zoom
PCB Footprints
LTV-827S-TA - Lite-On PCB footprint - Small Outline Packages - Small Outline Packages - 8-SMD
click to zoom
3D Models
LTV-827S-TA - Lite-On - 3D model - Small Outline Packages - 8-SMD
click to zoom

LTV-827S-TA Details

  • Manufacturer Part Number:

    LTV-827S-TA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-8

  • HTS Code:

    8541.40.80.00

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Lite-On Semiconductor Corporation

  • YTEOL:

    6

  • Additional Feature:

    UL APPROVED

  • Coll-Emtr Bkdn Voltage-Min:

    35 V

  • Configuration:

    SEPARATE, 2 CHANNELS

  • Current Transfer Ratio-Nom:

    50%

  • Dark Current-Max:

    100 nA

  • Forward Current-Max:

    0.05 A

  • Isolation Voltage-Max:

    5000 V

  • Number of Elements:

    2

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -30 °C

  • Optoelectronic Device Type:

    TRANSISTOR OUTPUT OPTOCOUPLER
