LV8405V-TLM-E - onsemi

Description: ON SEMICONDUCTOR - LV8405V-TLM-E - MOTOR DVR, FORW/REV, 2CH, 16SSOP

Download LV8405V-TLM-E Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

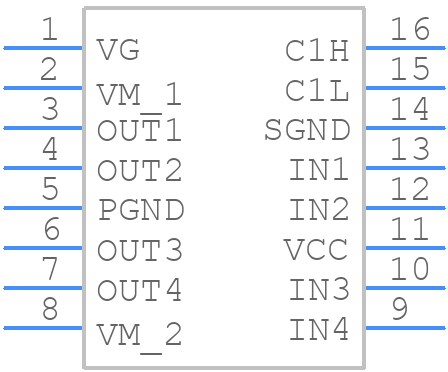

LV8405V-TLM-E - onsemi - PCB symbol
click to zoom
PCB Footprints
LV8405V-TLM-E - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SSOP 16 3178B
click to zoom
3D Models
LV8405V-TLM-E - onsemi - 3D model - Small Outline Packages - SSOP 16 3178B
click to zoom

LV8405V-TLM-E Details

  • Manufacturer Part Number:

    LV8405V-TLM-E

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    16

  • Manufacturer Package Code:

    565AM

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    1.2 mA

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

LV8405V-TLM-E Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
  • To ensure stability, use a minimum output capacitance of 10uF, and ensure that the output capacitor's ESR is less than 1 ohm. Also, avoid using ceramic capacitors with high ESL.
  • The maximum input voltage is 18V, but it's recommended to keep it below 15V for optimal performance and reliability.
  • The LV8405V-TLM-E is rated for operation up to 125°C, but the maximum junction temperature should not exceed 150°C. Ensure proper thermal design and heat sinking to prevent overheating.
  • Use a low-ESR output capacitor, and add a 10nF to 100nF ceramic capacitor in parallel with the output capacitor to filter out high-frequency noise. Also, ensure good PCB layout and decoupling.
