The recommended PCB layout for optimal thermal performance involves placing thermal vias under the IC, using a solid ground plane, and keeping the thermal path as short as possible. A 4-layer PCB with a dedicated thermal layer is also recommended.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended thermal design guidelines, use a suitable heat sink, and ensure good airflow around the device. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature.
The critical components that affect the output voltage accuracy of the LV8804FV-TRM-H include the internal voltage reference, the output voltage divider resistors, and the output capacitor. Ensure that these components are of high quality and meet the recommended specifications.
To troubleshoot output voltage errors or instability, check the input voltage, output voltage divider resistors, and output capacitor for any faults or deviations from the recommended specifications. Also, verify that the device is properly soldered and that there are no thermal issues.
The recommended input capacitor is a 10uF ceramic capacitor with a voltage rating of 25V or higher, and the recommended output capacitor is a 22uF ceramic capacitor with a voltage rating of 25V or higher. Ensure that the capacitors meet the recommended specifications and are placed close to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
LV8804FV-TRM-H Overview

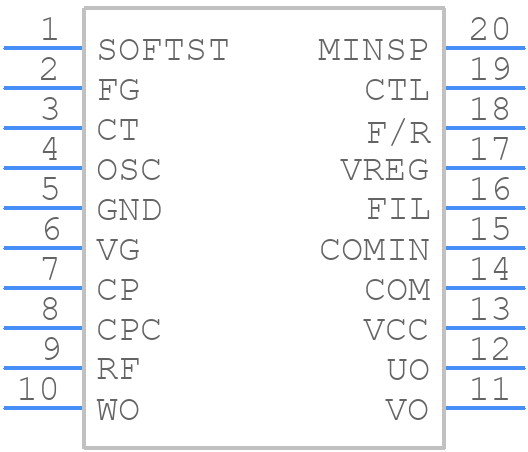

Use the download button to access the LV8804FV-TRM-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LV880,
or try a keyword search, such as Motion Control Electronics
