LV8824QA-NH - onsemi

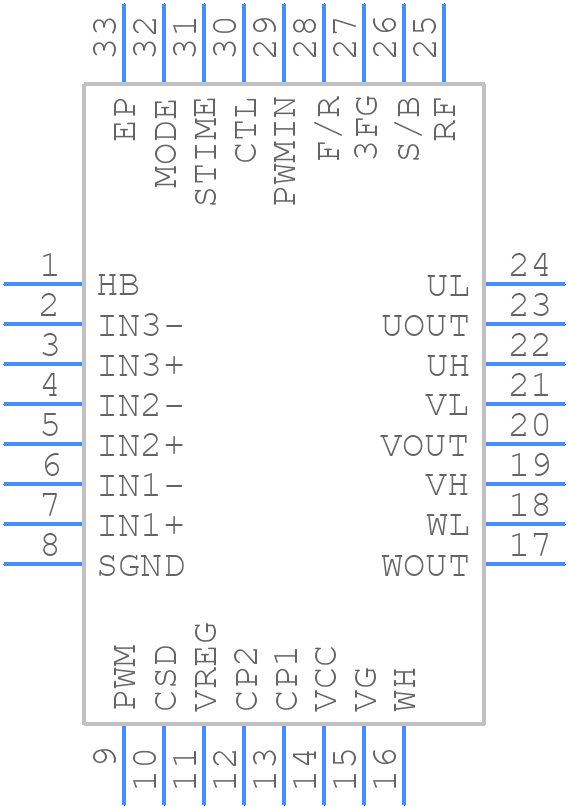

LV8824QA-NH Details

• Manufacturer Part Number:

  LV8824QA-NH

• Brand Name:

  ON Semiconductor

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  VQFN-32

• Manufacturer Package Code:

  510AZ

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Factory Lead Time:

  4 Weeks

• Manufacturer:

  onsemi

• YTEOL:

  0

• Analog IC - Other Type:

  1-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  S-XQCC-N32

• JESD-609 Code:

  e3

• Length:

  5 mm

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Terminals:

  32

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.05 A

• Package Body Material:

  UNSPECIFIED

• Package Code:

  HVQCCN

• Package Equivalence Code:

  LCC32,.2SQ,20

• Package Shape:

  SQUARE

• Package Style:

  CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  0.8 mm

• Supply Current-Max (Isup):

  6 mA

• Supply Voltage-Max (Vsup):

  33 V

• Supply Voltage-Min (Vsup):

  7 V

• Supply Voltage-Nom (Vsup):

  24 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  5 mm
