LY3-0-DC24 - OMRON Electronics

LY3-0-DC24 Details

• Manufacturer Part Number:

  LY3-0-DC24

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Unknown

• Factory Lead Time:

  11 Weeks

• Manufacturer:

  OMRON Electronic Components

• Body Breadth:

  21.59 mm

• Body Height:

  35.56 mm

• Body Length or Diameter:

  27.94 mm

• Coil Current(DC)-Max:

  0.059 A

• Coil Operate Voltage(DC):

  19.2 V

• Coil Power:

  1400 mW

• Coil Release Voltage(DC):

  2.4 V

• Coil Resistance:

  410 Ω

• Coil Voltage(DC)-Max:

  24 V

• Coil/Input Supply Type:

  DC

• Contact (AC) Max Rating R Load:

  10A@110VAC

• Contact Current(AC)-Max:

  10 A

• Contact Current(DC)-Max:

  10 A

• Contact (DC) Max Rating R Load:

  10A@24VDC

• Contact Voltage(AC)-Max:

  110 V

• Contact Voltage(DC)-Max:

  24 V

• Contact/Output Supply Type:

  AC/DC

• Manufacturer Series:

  LY

• Mounting Feature:

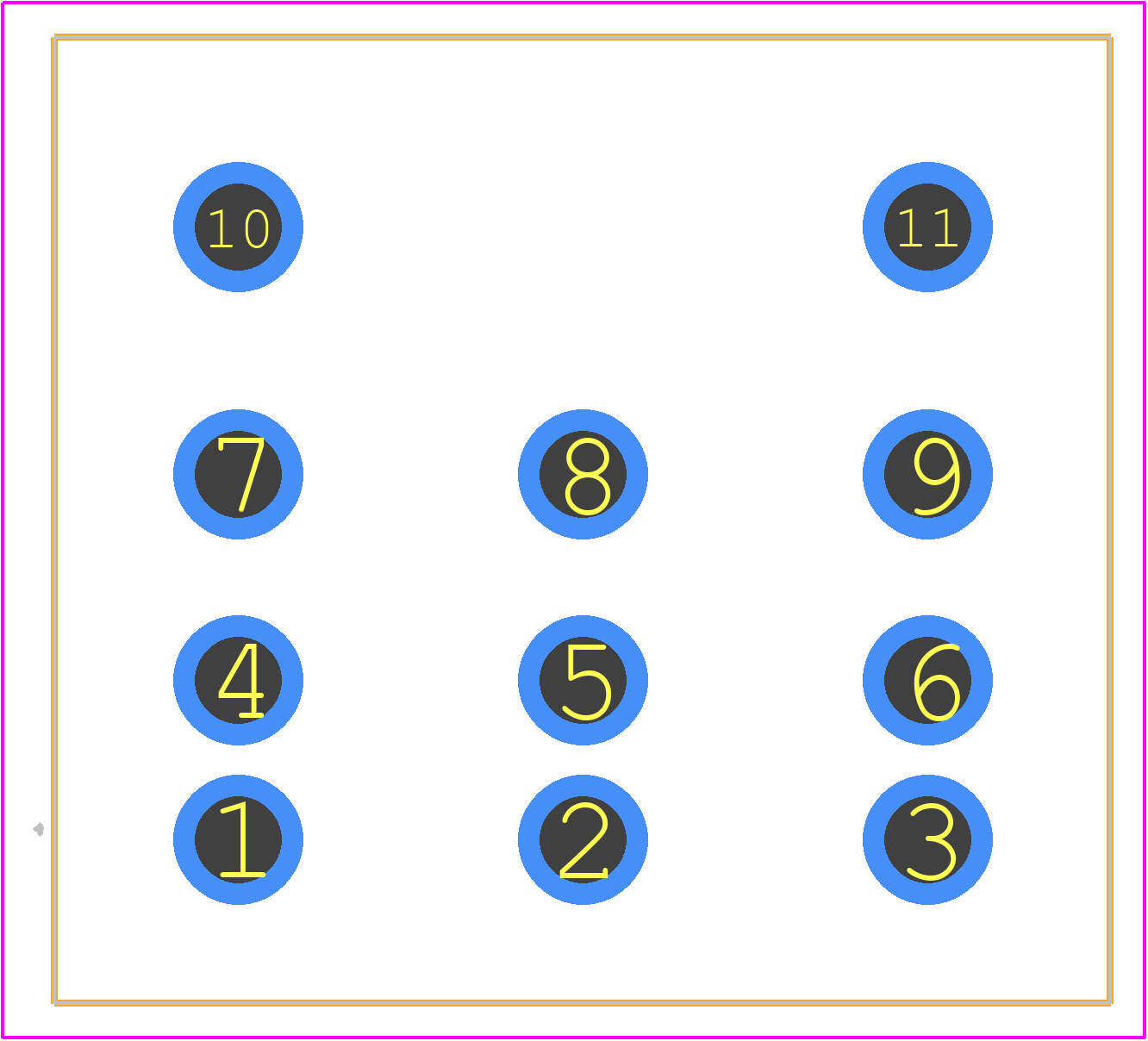

  THROUGH HOLE-STRAIGHT MOUNT

• Operate Time:

  25 ms

• Operating Temperature-Max:

  55 °C

• Operating Temperature-Min:

  -25 °C

• Physical Dimension:

  27.94mm x 21.59mm x 35.56mm

• Reference Standard:

  CE; CSA; TUV; UL

• Relay Action:

  MOMENTARY

• Relay Function:

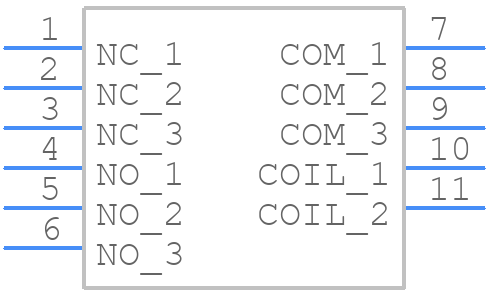

  3PDT

• Relay Type:

  POWER/SIGNAL RELAY

• Release Time:

  25 ms

• Surface Mount:

  NO

• Termination Type:

  SOLDER
