M0G3107QRHBRQ1 - Texas Instruments

Description: • Core – Arm® 32-bit Cortex®-M0+ CPU with memory protection unit, frequency up to 80MHz • Functional Safety Quality-Managed – Functional Safety Manual and FMEDA available to aid in functional safety system design • Operating characteristics – Extended temperature: –40°C up to 125°C – Wide supply voltage range: 1.62V to 3.6V • Memories – Up to 128KB of flash memory with built-in error correction code (ECC) – Up to 32KB of SRAM with hardware parity • High-performance analog peripherals – Two si

Download M0G3107QRHBRQ1 Model

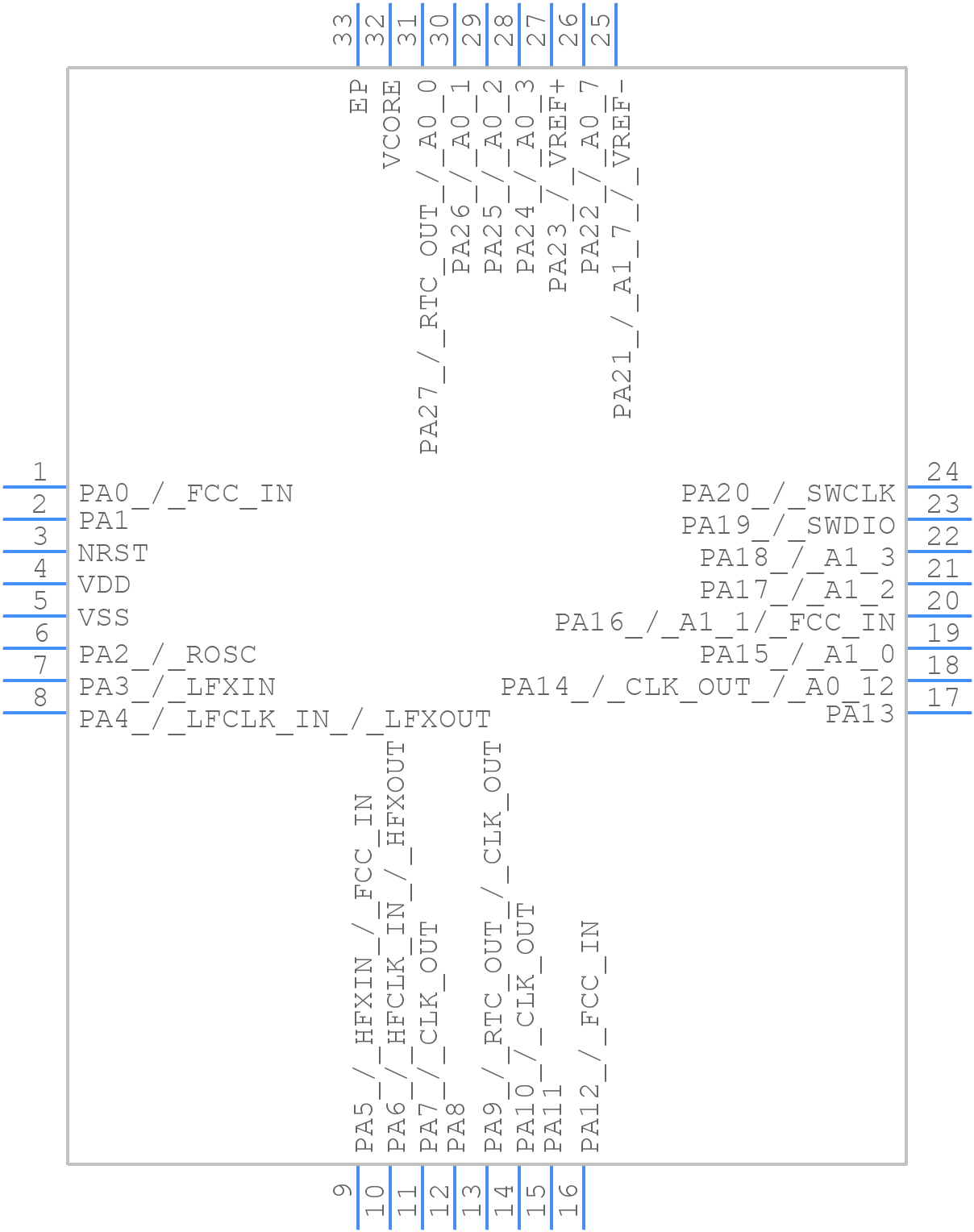

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
M0G3107QRHBRQ1 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VQFN
click to zoom
3D Models
M0G3107QRHBRQ1 - Texas Instruments  - 3D model - Quad Flat No-Lead - VQFN
click to zoom

M0G3107QRHBRQ1 Details

  • Manufacturer Part Number:

    M0G3107QRHBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Has ADC:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    NO

  • CPU Family:

    CORTEX-M0

  • Clock Frequency-Max:

    48 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    YES

  • Format:

    FIXED POINT

  • Integrated Cache:

    YES

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    2

  • Number of DMA Channels:

    7

  • Number of I/O Lines:

    28

  • Number of Serial I/Os:

    5

  • Number of Terminals:

    32

  • Number of Timers:

    7

  • On Chip Data RAM Width:

    8

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • RAM (bytes):

    32768

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Speed:

    80 MHz

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    1.62 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER, RISC
