M10162040108X0PWAR - Renesas Electronics

Description: The M1016204 series is a 16Mbit high performance non-volatile MRAM with speed up to 108MHz. The M1016204 offers superior reliability and greater than 20-year data retention (at 85°C). It does not require backup battery or capacitor(s) compared to non-volatile SRAM. The M1016204 supports Quad SPI, SDR and DDR interface. It operates at 1.8V typical from  -40°C to +105°C (industrial plus version) and offered in an SOIC or DFN (WSON) package.

Download M10162040108X0PWAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

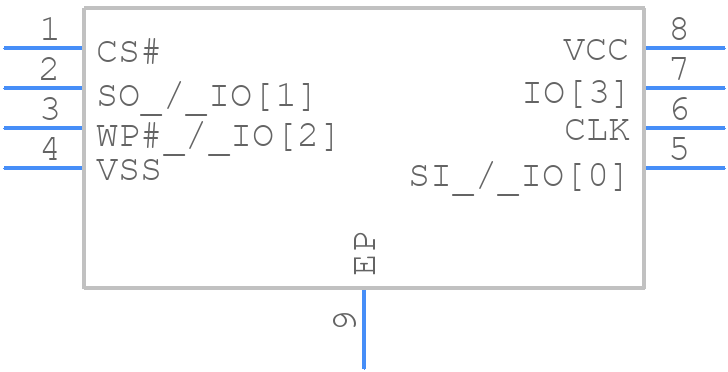

M10162040108X0PWAR - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
M10162040108X0PWAR - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - M10162040108X0PWAR
click to zoom
3D Models
M10162040108X0PWAR - Renesas Electronics - 3D model - Small Outline No-lead - M10162040108X0PWAR
click to zoom

M10162040108X0PWAR Details

  • Manufacturer Part Number:

    M10162040108X0PWAR

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Pin Count:

    8

  • Manufacturer Package Code:

    NFT8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

M10162040108X0PWAR Frequently Asked Questions (FAQs)

  • Renesas provides a recommended PCB layout guide for the M10162040108X0PWAR, which includes guidelines for thermal vias, copper pours, and component placement to ensure optimal thermal performance. Contact Renesas support for more information.
  • The M10162040108X0PWAR has an internal overcurrent protection feature, but it's recommended to implement an external overcurrent protection circuit to ensure reliable operation. Renesas provides application notes and design guides for implementing overcurrent protection.
  • Renesas recommends following the JEDEC J-STD-020D.1 standard for soldering the M10162040108X0PWAR. The recommended soldering profile includes a peak temperature of 260°C, with a dwell time of 30-60 seconds above 220°C.
  • The M10162040108X0PWAR is designed to operate in a variety of environments, including those with high vibration. However, it's essential to follow Renesas' guidelines for mounting and securing the device to ensure reliable operation in high-vibration environments.
  • Renesas provides a troubleshooting guide for the internal voltage regulator in the M10162040108X0PWAR. The guide includes steps for identifying and resolving common issues, such as voltage drops, oscillations, and overheating.
