M24308/24-5F - Amphenol

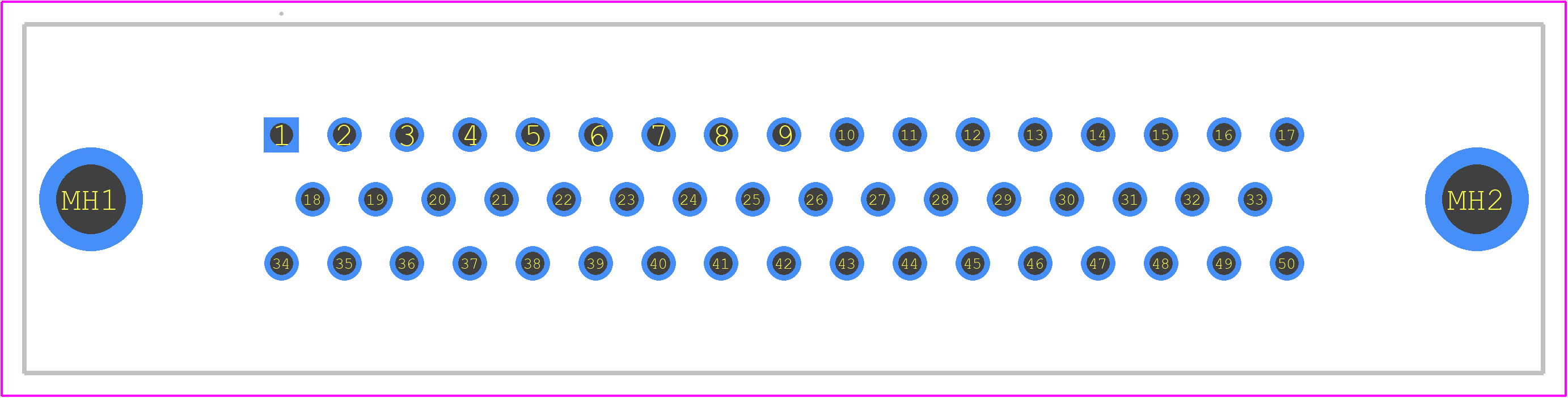

M24308/24-5F Details

• Manufacturer Part Number:

  M24308/24-5F

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Factory Lead Time:

  13 Weeks

• Manufacturer:

  Amphenol Corporation

• YTEOL:

  9

• Board Mounting Option:

  HOLE .122-.128

• Body Breadth:

  0.62 inch

• Body Depth:

  0.291 inch

• Body Length:

  2.65 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Gender:

  MALE

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  7.3 mΩ

• Contact Style:

  RND PIN-SKT

• Durability:

  500 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  17.792 N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  NATURAL

• Insulator Material:

  GLASS FILLED POLYESTER

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.109 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE 0.12

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Rated Current (Signal):

  7.5 A

• Shell Finish:

  CADMIUM

• Shell Material:

  STEEL/BRASS

• Shell Size:

  5/D

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  50

• Wire Size-Max:

  20 AWG

• Wire Size-Min:

  26 AWG

• Withdrawl Force-Min:

  17.792 N
