M24308/24-8F - ITT CANNON

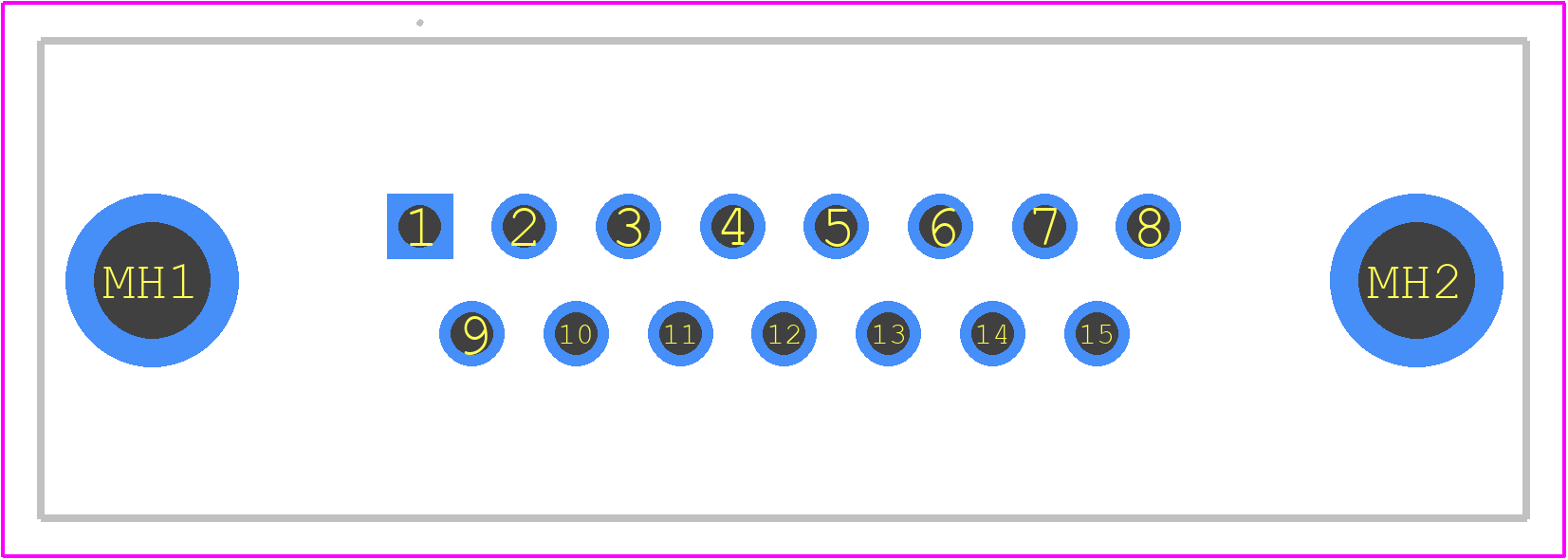

M24308/24-8F Details

• Manufacturer Part Number:

  M24308/24-8F

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  ITT Interconnect Solutions

• YTEOL:

  8.18

• Additional Feature:

  STANDARD: MIL-DTL-24308, POLARIZED

• Board Mounting Option:

  HOLE .122-.128

• Body Breadth:

  0.509 inch

• Body Depth:

  0.291 inch

• Body Length:

  1.556 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  MALE

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• DIN Conformance:

  NO

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• MIL Conformance:

  YES

• Mating Contact Pitch:

  0.109 inch

• Mating Contact Row Spacing:

  0.109 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  HOLE .115-.125

• Mounting Option 2:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD AND PANEL

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.8448 mm

• Rated Current (Signal):

  5 A

• Shell Size:

  2/A

• Terminal Pitch:

  2.77 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  15
