M24SR16-YMN6T/2 - STMicroelectronics

Description: Dynamic NFC/RFID tag IC with 16-Kbit EEPROM, NFC Forum Type 4 Tag and I²C interface

Download M24SR16-YMN6T/2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

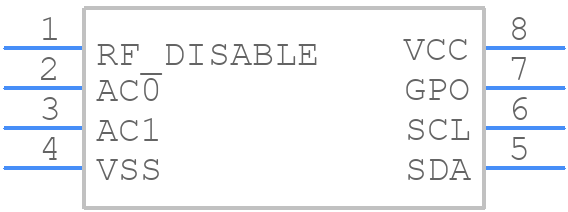

M24SR16-YMN6T/2 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
M24SR16-YMN6T/2 - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SO8N
click to zoom
3D Models
M24SR16-YMN6T/2 - STMicroelectronics - 3D model - Small Outline Packages - SO8N
click to zoom

M24SR16-YMN6T/2 Details

  • Manufacturer Part Number:

    M24SR16-YMN6T/2

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    STMicroelectronics

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

M24SR16-YMN6T/2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the M24SR16-YMN6T/2 is 1.8V to 5.5V.
  • The NFC interface of the M24SR16-YMN6T/2 is based on the ISO/IEC 14443 standard. You need to use an NFC controller or a microcontroller with an NFC interface to communicate with the device.
  • The maximum data retention period of the M24SR16-YMN6T/2 is 50 years at a temperature of 25°C.
  • The M24SR16-YMN6T/2 is rated for operation up to 85°C. However, the data retention period may be affected at higher temperatures. Consult the datasheet for more information.
  • The M24SR16-YMN6T/2 has built-in security features such as password protection and encryption. You can also use external security mechanisms such as secure authentication and encryption protocols.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M24SR16-YMN6T/2 Overview

Use the download button to access the M24SR16-YMN6T/2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like M24SR, or try a keyword search, such as Other Consumer ICs
