M2GL005-VFG256 - Microsemi Corporation

Description: FPGA IGLOO®2 Family 6060 Cells 1.2V 256-Pin VFBGA Tray

Download M2GL005-VFG256 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
M2GL005-VFG256 - Microsemi Corporation - PCB symbol
click to zoom
PCB Footprints

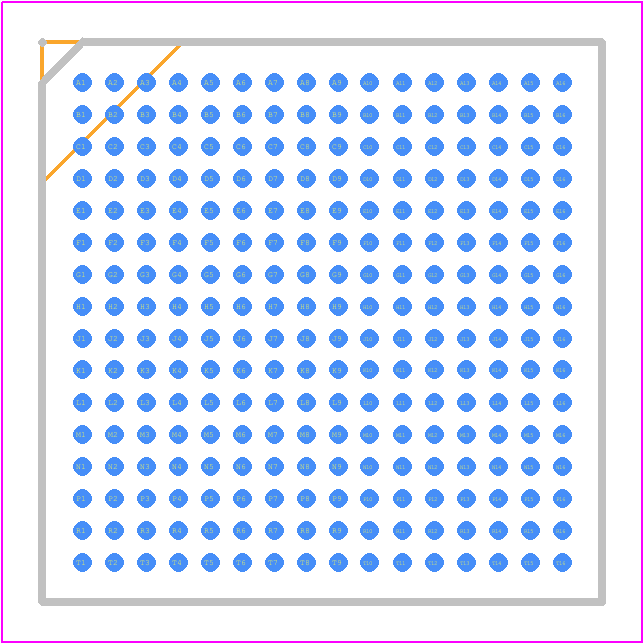

M2GL005-VFG256 - Microsemi Corporation PCB footprint - BGA - BGA - VF256
click to zoom
3D Models
M2GL005-VFG256 - Microsemi Corporation - 3D model - BGA - VF256
click to zoom

M2GL005-VFG256 Details

  • Manufacturer Part Number:

    M2GL005-VFG256

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    14 X 14 MM, 0.80 MM PITCH, ROHS COMPLIANT, VFBGA-256

  • HTS Code:

    8542.31.00.60

  • Manufacturer:

    Microsemi Corporation (now Microchip)

  • JESD-30 Code:

    S-PBGA-B256

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    256

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA256,16X16,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Programmable Logic Type:

    FIELD PROGRAMMABLE GATE ARRAY

  • Seated Height-Max:

    1.56 mm

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

M2GL005-VFG256 Frequently Asked Questions (FAQs)

  • Microsemi recommends a 4-6 layer PCB stackup with a solid ground plane, and to follow the PCB layout guidelines provided in the M2GL005-VFG256 PCB Design Guide.
  • Use a multi-layer PCB with a solid power plane, and follow the PDN design guidelines in the M2GL005-VFG256 Power Distribution Network Application Note.
  • The FPGA has a maximum junction temperature of 100°C. Ensure good airflow, use a heat sink if necessary, and follow the thermal management guidelines in the M2GL005-VFG256 Thermal Management Application Note.
  • Use the Clocking Architecture Guide for M2GL005-VFG256, and follow the recommended clocking schemes and PLL settings for optimal performance and low jitter.
  • Refer to the M2GL005-VFG256 I/O Bank and Voltage Regulator Settings Application Note for recommended settings and configuration guidelines.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

M2GL005-VFG256 Overview

Use the download button to access the M2GL005-VFG256 schematic symbol, PCB footprint, and 3D model.
