M30162040108X0IWAY - Renesas Electronics

Description: The M3016204 series is a 16Mbit high performance non-volatile MRAM with speed up to 108MHz. The M3016204 offers superior reliability and greater than 20-year data retention (at 85°C). It does not require backup battery or capacitor(s) compared to non-volatile SRAM. The M3016204 supports Quad SPI, SDR and DDR interface. It operates at 3V typical from -40°C to +105°C (industrial plus version) and offered in an SOIC or DFN (WSON) package.

Download M30162040108X0IWAY Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

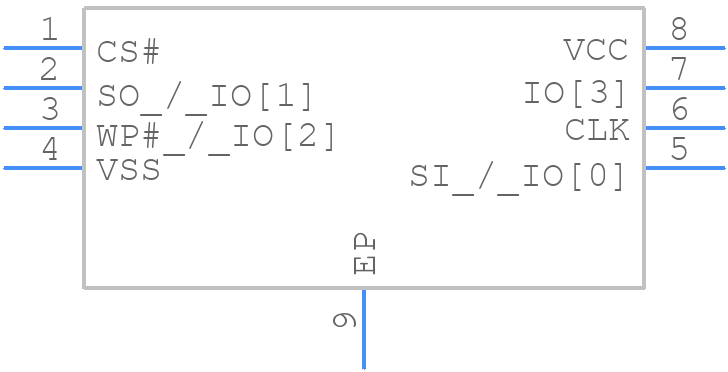

M30162040108X0IWAY - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
M30162040108X0IWAY - Renesas Electronics PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-Pad DFN (WSON)
click to zoom
3D Models
M30162040108X0IWAY - Renesas Electronics - 3D model - Small Outline No-lead - 8-Pad DFN (WSON)
click to zoom

M30162040108X0IWAY Details

  • Manufacturer Part Number:

    M30162040108X0IWAY

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DFN

  • Pin Count:

    8

  • Manufacturer Package Code:

    NFT8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    36 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    0

  • Memory IC Type:

    MRAM

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260
