M48T128Y-70PM1 - STMicroelectronics

Description: Real Time Clock (RTC) IC Clock/Calendar Parallel 32-DIP Module (0.600", 15.24mm) 4.5V ~ 5.5V,0°C ~ 70°C,Through Hole

Download M48T128Y-70PM1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

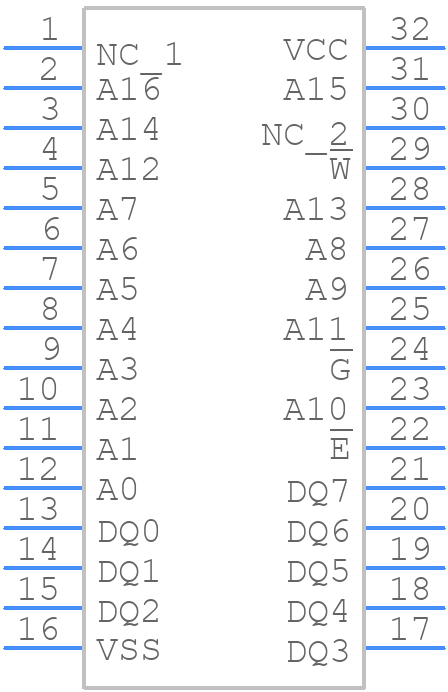

M48T128Y-70PM1 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints

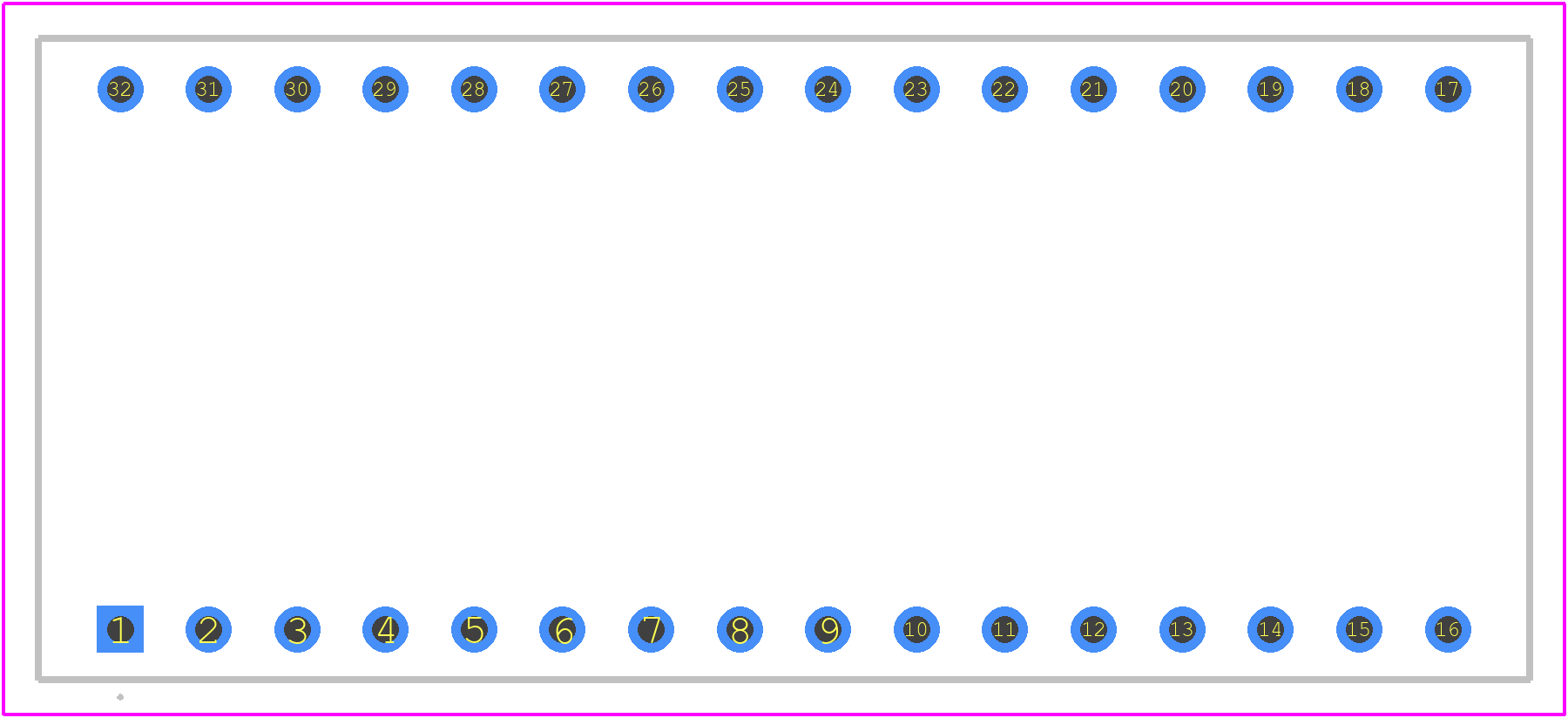

M48T128Y-70PM1 - STMicroelectronics PCB footprint - Other - Other - PMDIP32
click to zoom
3D Models
M48T128Y-70PM1 - STMicroelectronics - 3D model - Other - PMDIP32
click to zoom

M48T128Y-70PM1 Details

  • Manufacturer Part Number:

    M48T128Y-70PM1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Pin Count:

    32

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.41

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Memory IC Type:

    STANDARD SRAM
