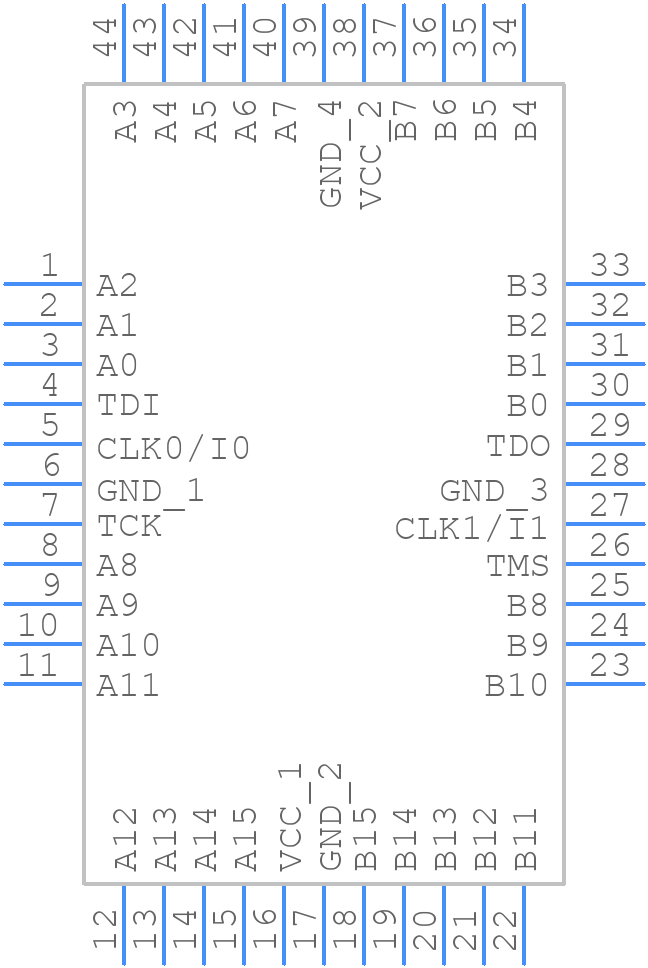

M4A3-32/32-10VC - Lattice Semiconductor

M4A3-32/32-10VC Details

• Manufacturer Part Number:

  M4A3-32/32-10VC

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

• Package Description:

  TQFP-44

• Pin Count:

  44

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Lattice Semiconductor Corporation

• YTEOL:

  0

• Additional Feature:

  YES

• Clock Frequency-Max:

  62.5 MHz

• In-System Programmable:

  YES

• JESD-30 Code:

  S-PQFP-G44

• JESD-609 Code:

  e0

• JTAG BST:

  YES

• Length:

  10 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  32

• Number of Inputs:

  34

• Number of Macro Cells:

  32

• Number of Outputs:

  32

• Number of Terminals:

  44

• Operating Temperature-Max:

  70 °C

• Organization:

  0 DEDICATED INPUTS, 32 I/O

• Output Function:

  MACROCELL

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TQFP

• Package Equivalence Code:

  TQFP44,.47SQ,32

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, THIN PROFILE

• Peak Reflow Temperature (Cel):

  240

• Programmable Logic Type:

  EE PLD

• Propagation Delay:

  10 ns

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.2 mm

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Lead (Sn85Pb15)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  QUAD

• Width:

  10 mm
