MAL209537152E3 - Vishay

Description: Vishay 1500μF 450 V Aluminium Electrolytic Capacitor, 95 Series 10000 h, 3000 h, 400000 h 45 Dia. x 100mm

Download MAL209537152E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL209537152E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

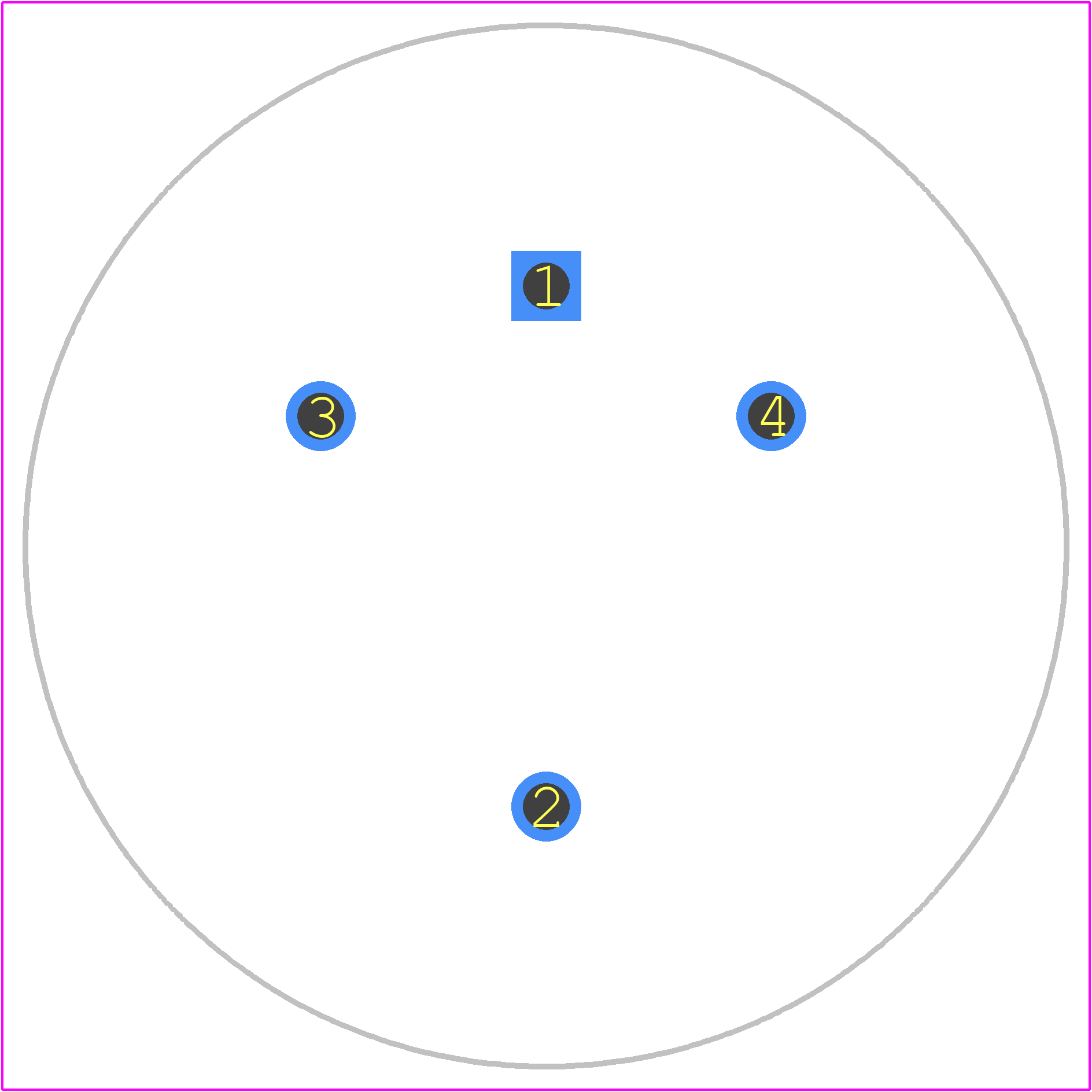

MAL209537152E3 - Vishay PCB footprint - Other - Other - MAL209537152E3 (45x100)
click to zoom
3D Models
MAL209537152E3 - Vishay - 3D model - Other - MAL209537152E3 (45x100)
click to zoom

MAL209537152E3 Details

  • Manufacturer Part Number:

    MAL209537152E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.55

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    1500 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    45 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    71 mΩ

  • Leakage Current:

    1.354 mA

  • Length:

    100 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    7400 mA

  • Surface Mount:

    NO

  • Terminal Shape:

    SNAP-IN

MAL209537152E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL209537152E3 can be found in Vishay's application note AN10395, which provides guidelines for surface-mount assembly of Vishay's metal alloy resistors.
  • To prevent damage, handle the MAL209537152E3 by the body, avoiding touching the terminations. Use anti-static wrist straps, mats, or other ESD protection methods to prevent electrostatic discharge damage.
  • The maximum power rating for the MAL209537152E3 decreases with increasing temperature. Consult Vishay's application note AN20005, which provides derating curves for metal alloy resistors.
  • The MAL209537152E3 is not suitable for use in high-humidity environments. If your application requires operation in humid conditions, consider using a resistor with a higher moisture sensitivity level (MSL) rating or a conformal coating.
  • Use a soldering iron with a temperature of 260°C (500°F) or less, and a solder with a melting point of 180°C (356°F) or higher. Avoid using excessive soldering iron pressure, which can damage the resistor.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL209537152E3 Overview

Use the download button to access the MAL209537152E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL20, or try a keyword search, such as Ceramic Capacitors
