MAL211916222E3 - Vishay

Description: Cap Aluminum Lytic 2200uF 25V -10% to 50% (21 X 38mm) Axial 0.11 Ohm 1550mA 8000h 125°C Bulk

Download MAL211916222E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL211916222E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

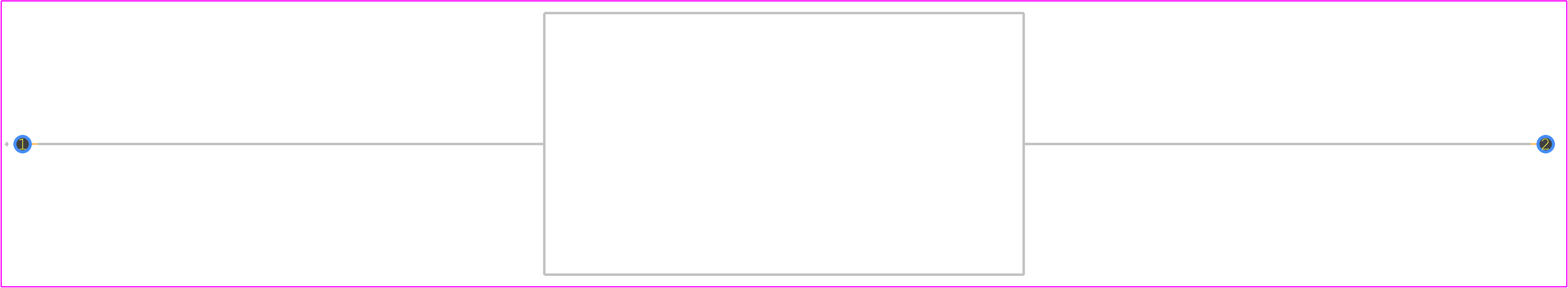

MAL211916222E3 - Vishay PCB footprint - Other - Other - MAL211916222E3-4
click to zoom
3D Models
MAL211916222E3 - Vishay - 3D model - Other - MAL211916222E3-4
click to zoom

MAL211916222E3 Details

  • Manufacturer Part Number:

    MAL211916222E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    6 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    2200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    21 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    110 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.334 mA

  • Length:

    38 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    50%

  • Rated (DC) Voltage (URdc):

    25 V

  • Ripple Current:

    1550 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.13

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE
