MAL215759479E3 - Vishay

Description: CAP ALUM 47UF 20% 500V SNAP

Download MAL215759479E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL215759479E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

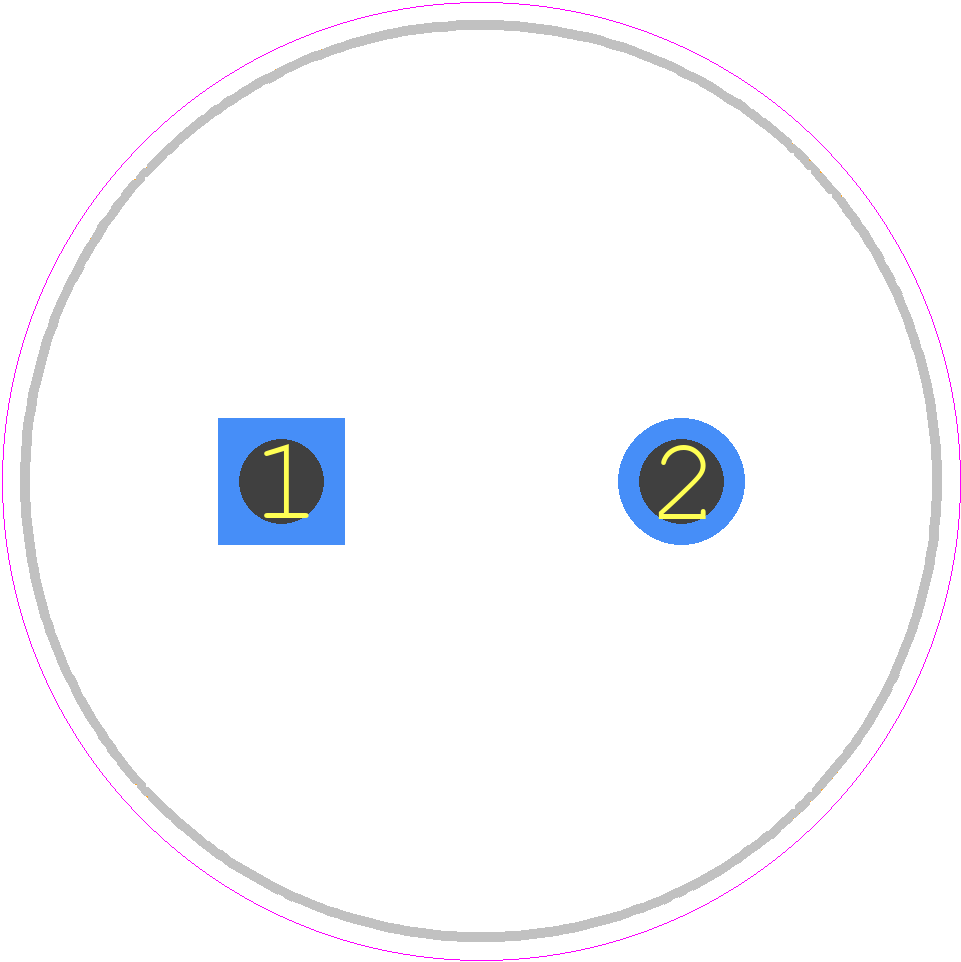

MAL215759479E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 22*25
click to zoom
3D Models
MAL215759479E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 22*25
click to zoom

MAL215759479E3 Details

  • Manufacturer Part Number:

    MAL215759479E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    22 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    3540 mΩ

  • Leakage Current:

    0.24 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    500 V

  • Ripple Current:

    680 mA

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL215759479E3 Frequently Asked Questions (FAQs)

  • The recommended storage temperature range for MAL215759479E3 is -40°C to 125°C.
  • Yes, the MAL215759479E3 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the EU's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The maximum operating voltage for MAL215759479E3 is 50V.
  • Yes, the MAL215759479E3 is designed for high-reliability applications, such as aerospace, defense, and industrial systems, due to its high-quality materials and manufacturing process.
  • To prevent damage, handle the MAL215759479E3 component with care, avoiding excessive mechanical stress, bending, or twisting. Use anti-static precautions, such as wrist straps or mats, to prevent electrostatic discharge (ESD) damage.
