MAL225636223E3 - Vishay

MAL225636223E3 Frequently Asked Questions (FAQs)

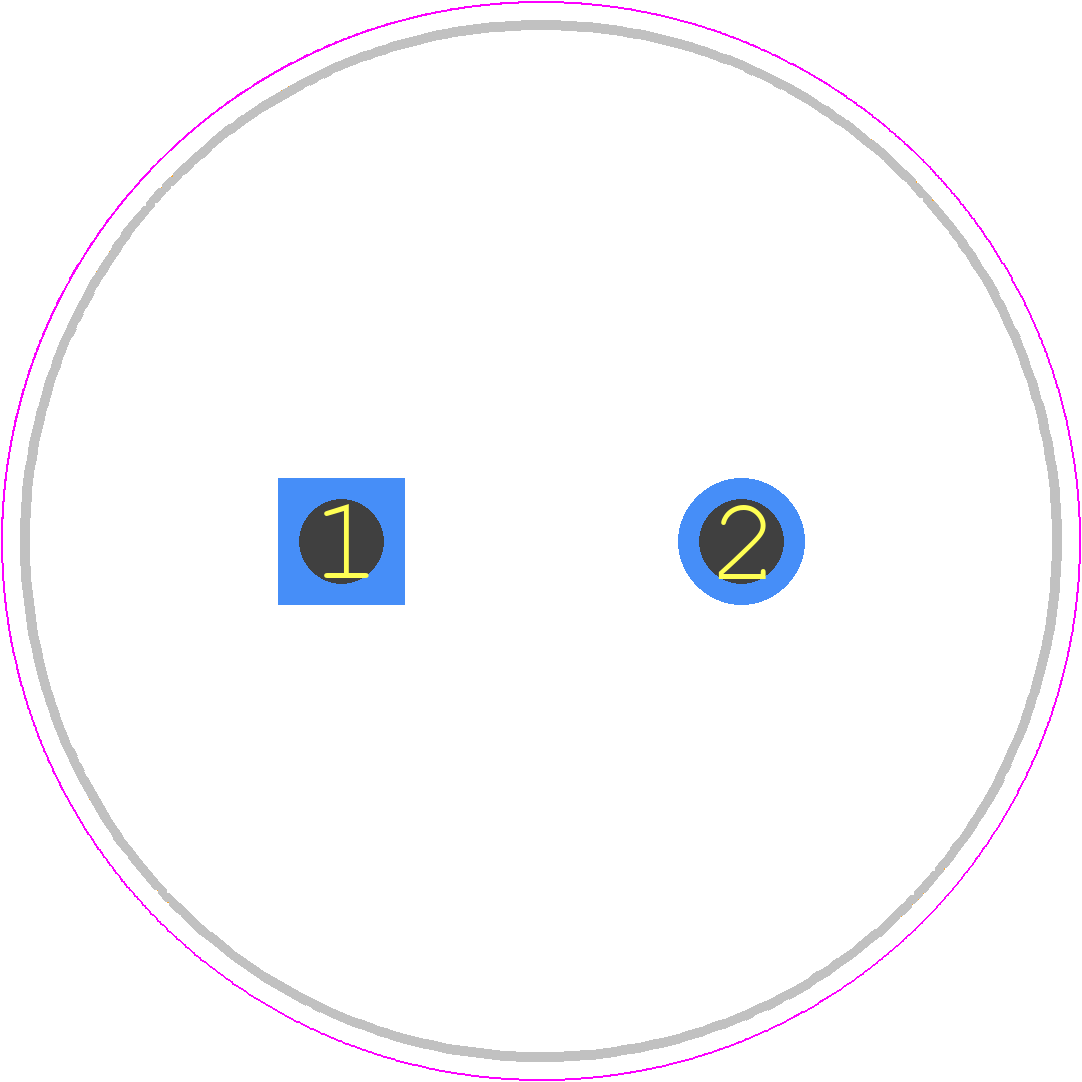

• What is the recommended land pattern for MAL225636223E3?
  The recommended land pattern for MAL225636223E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of Vishay's aluminum electrolytic capacitors.
• How do I handle the capacitor's polarity during assembly?
  The MAL225636223E3 has a polarity marking on the component. The longer lead is the positive leg, and the shorter lead is the negative leg. Ensure correct polarity during assembly to avoid damage or malfunction.
• What is the derating curve for this capacitor?
  The derating curve for the MAL225636223E3 can be found in the datasheet, but it's also available in Vishay's application note AN1003, which provides general guidelines for derating aluminum electrolytic capacitors.
• Can I use this capacitor in a high-vibration environment?
  The MAL225636223E3 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use a capacitor with a more robust design, such as Vishay's Vibration-Resistant Aluminum Electrolytic Capacitors.
• What is the ESR (Equivalent Series Resistance) of this capacitor?
  The ESR of the MAL225636223E3 is not explicitly stated in the datasheet. However, Vishay provides ESR values for similar capacitors in their application note AN1013. For the MAL225636223E3, the ESR is approximately 0.15 ohms at 100 kHz and 20°C.
