Part Image

MAL225652682E3 - Vishay

Description: Cap Aluminum 6800uF 80V 20% Aluminum Cylindrical Can 0.022 Ohm 3.56A 2000 hr 105°C Cardboard

Download MAL225652682E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL225652682E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

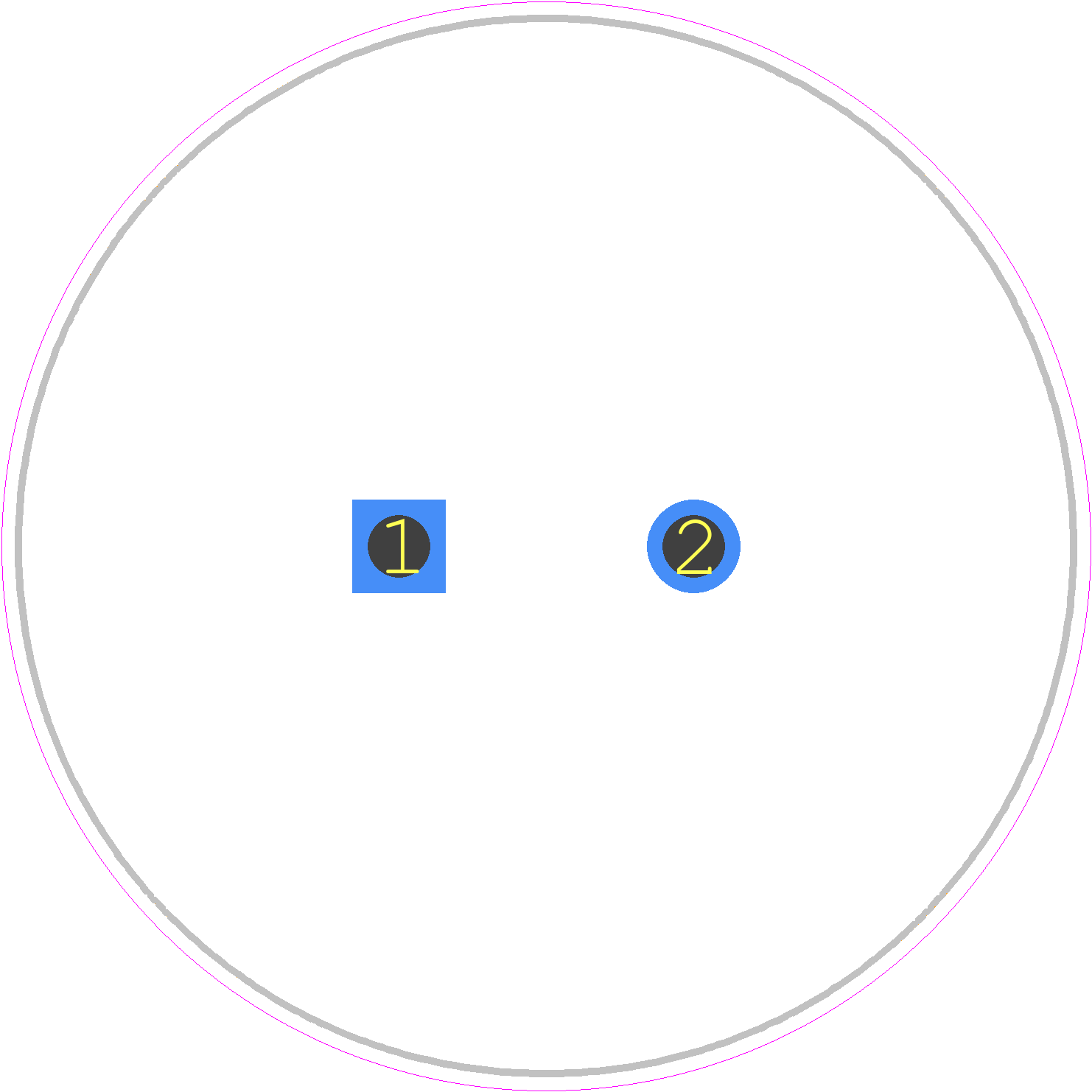

MAL225652682E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - MAL (35 x 40)
click to zoom
3D Models
MAL225652682E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - MAL (35 x 40)
click to zoom

MAL225652682E3 Details

  • Manufacturer Part Number:

    MAL225652682E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    6800 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    0.049 mΩ

  • Leakage Current:

    1.5 mA

  • Length:

    40 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Bulk

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    80 V

  • Ripple Current:

    3560 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.25

  • Terminal Shape:

    SNAP-IN

MAL225652682E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL225652682E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of Vishay's aluminum electrolytic capacitors.
  • The MAL225652682E3 has a polarity marking on the capacitor body. The longer lead is the positive leg, and the shorter lead is the negative leg. Ensure correct polarity during assembly to avoid damage or malfunction.
  • Vishay provides a derating curve for their aluminum electrolytic capacitors in their application note AN1003. The derating curve shows the reduction in capacitance and voltage rating as a function of temperature, frequency, and ripple current.
  • The MAL225652682E3 is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to use a capacitor with a more robust design, such as Vishay's Vibration-Resistant Aluminum Electrolytic Capacitors.
  • The ESR of the MAL225652682E3 is not explicitly stated in the datasheet. However, Vishay provides ESR values for their aluminum electrolytic capacitors in their application note AN1013. The ESR of the MAL225652682E3 can be estimated to be around 100-150 mΩ at 100 kHz.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL225652682E3 Overview

Use the download button to access the MAL225652682E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL22, or try a keyword search, such as Ceramic Capacitors
