MAL225943471E3 - Vishay

Description: Aluminum Electrolytic Capacitors - Snap In 470uF 250V 20% 105C 3000H 25x35mm

Download MAL225943471E3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
MAL225943471E3 - Vishay - PCB symbol
click to zoom
PCB Footprints

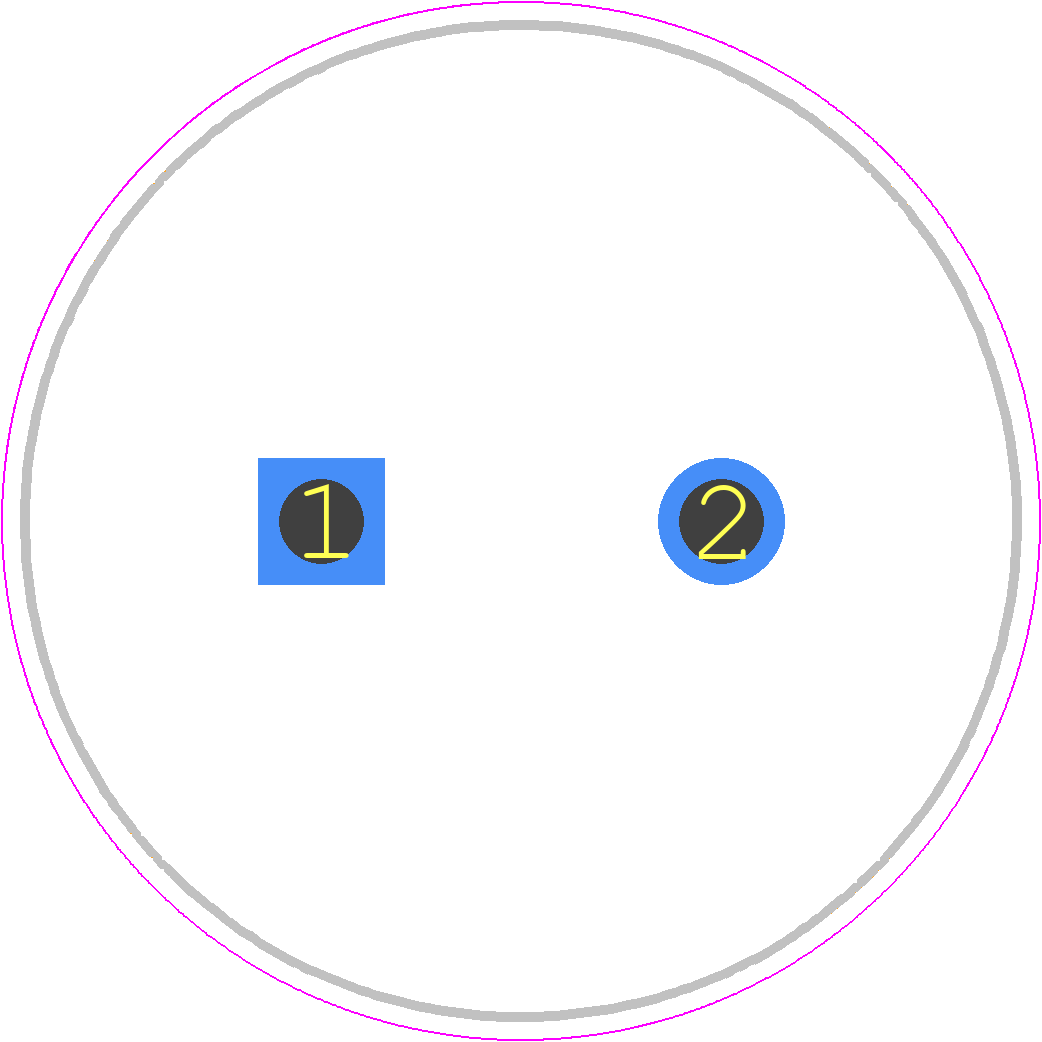

MAL225943471E3 - Vishay PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 25*35-8
click to zoom
3D Models
MAL225943471E3 - Vishay - 3D model - Capacitor, Polarized Radial Diameter - 25*35-8
click to zoom

MAL225943471E3 Details

  • Manufacturer Part Number:

    MAL225943471E3

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Vishay Intertechnologies

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    220 mΩ

  • Leakage Current:

    1.18 mA

  • Length:

    35 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Multilayer:

    No

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    250 V

  • Ripple Current:

    2160 mA

  • Surface Mount:

    NO

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

MAL225943471E3 Frequently Asked Questions (FAQs)

  • The recommended land pattern for MAL225943471E3 can be found in Vishay's application note AN10365, which provides guidelines for surface-mount assembly of Vishay's aluminum electrolytic capacitors.
  • The MAL225943471E3 has a polarity marking on the component. The longer lead is the positive leg, and it should be connected to the positive voltage rail or signal. Improper polarity connection can lead to capacitor failure or even damage to the surrounding circuitry.
  • The derating curve for the MAL225943471E3 can be found in the datasheet, but it's not explicitly stated. However, Vishay provides a general derating curve for their aluminum electrolytic capacitors in their application note AN10273. The curve shows the reduction in capacitance and voltage rating as a function of temperature.
  • The MAL225943471E3 is designed for general-purpose use and may not be suitable for high-vibration environments. Vishay recommends their Vibration-Resistant Aluminum Capacitors (VRA series) for applications that require high vibration resistance.
  • The ESR of the MAL225943471E3 is not explicitly stated in the datasheet. However, Vishay provides a general guideline for ESR values in their application note AN10273. For the MAL225943471E3, the ESR is typically around 100-200 mΩ at 100 kHz and 20°C.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAL225943471E3 Overview

Use the download button to access the MAL225943471E3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAL22, or try a keyword search, such as Ceramic Capacitors
