MAL225966221E3 footprint, schematic symbol and 3D model by Vishay

Symbol

click to zoom

PCB Footprints

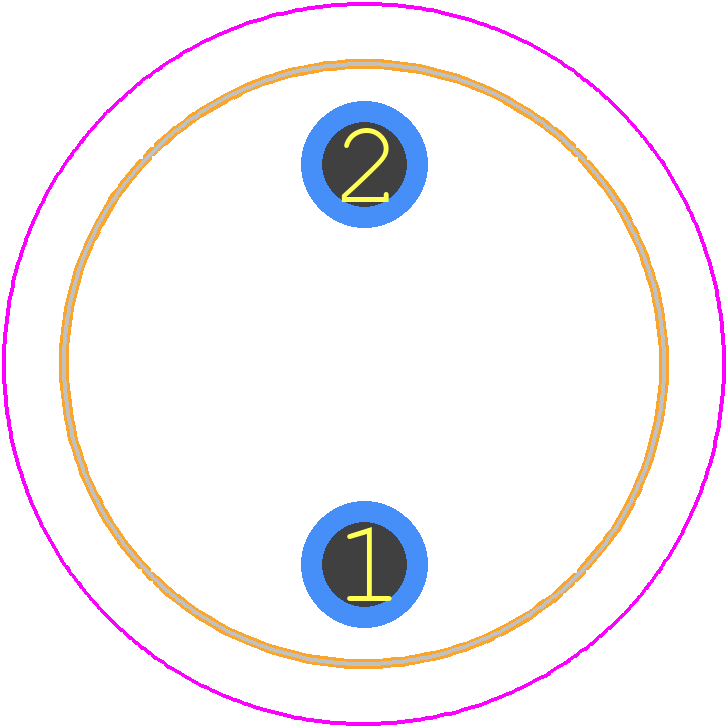

MAL225966221E3 - Vishay PCB footprint - Other - Other - MAL225966221E3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for MAL225966221E3
Part Number MAL225966221E3
Manufacturer Vishay
Pin Count 2
Part Category Capacitor Polarised
Package Category Other
Footprint Name Other - MAL225966221E3-1
Released Date Sep 13, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

MAL225966221E3 Details

Manufacturer Part Number:
MAL225966221E3
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8532.22.00.40
Manufacturer:
Vishay Intertechnologies
YTEOL:
6
Capacitance:
220 µF
Capacitor Type:
ALUMINUM ELECTROLYTIC CAPACITOR
Diameter:
25 mm
Dielectric Material:
ALUMINUM (WET)
ESR:
600 mΩ
Leakage Current:
0.88 mA
Length:
35 mm
Mounting Feature:
THROUGH HOLE MOUNT
Multilayer:
No
Negative Tolerance:
20%
Number of Terminals:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Package Style:
Snap-in
Packing Method:
BULK
Polarity:
POLARIZED
Positive Tolerance:
20%
Rated (DC) Voltage (URdc):
400 V
Ripple Current:
1340 mA
Surface Mount:
NO
Terminal Pitch:
10 mm
Terminal Shape:
SNAP-IN

MAL225966221E3 Frequently Asked Questions (FAQs)

The recommended land pattern for MAL225966221E3 can be found in the Vishay Intertechnologies' application note AN1033, which provides guidelines for surface mount assembly of ceramic chip capacitors.
To prevent damage, handle the MAL225966221E3 component by the edges, avoid touching the electrodes, and use anti-static wrist straps or mats to prevent electrostatic discharge (ESD).
The maximum voltage derating for MAL225966221E3 is typically 80% of the rated voltage, but it's recommended to consult the datasheet and application notes for specific derating guidelines.
The MAL225966221E3 is rated for operation up to 125°C, but it's essential to consider the component's temperature coefficient, thermal stress, and potential degradation when operating at high temperatures.
The ESR of MAL225966221E3 can be determined by measuring the impedance of the component at high frequencies (e.g., 100 kHz) using an impedance analyzer or a network analyzer.

Trust Checks

Expert Contribution

System Verified

Community Approved

MAL225966221E3 Overview

Use the download button to access the MAL225966221E3 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like MAL22, or try a keyword search, such as Ceramic Capacitors
