MAT14ARZ-R7 - Analog Devices

Description: Bipolar Transistors - BJT Matched Monolithic Quad Transistor

Download MAT14ARZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

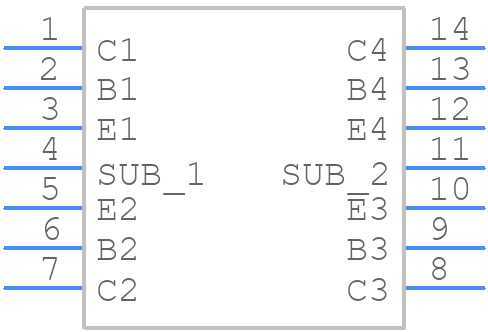

MAT14ARZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAT14ARZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-14 (SOIC)
click to zoom
3D Models
MAT14ARZ-R7 - Analog Devices - 3D model - Small Outline Packages - R-14 (SOIC)
click to zoom

MAT14ARZ-R7 Details

  • Manufacturer Part Number:

    MAT14ARZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    ROHS COMPLIANT, SOIC_N-14

  • Pin Count:

    14

  • Manufacturer Package Code:

    R-14

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.21.00.95

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    LOW NOISE

  • Collector Current-Max (IC):

    0.03 A

  • Collector-Emitter Voltage-Max:

    40 V

  • Configuration:

    COMPLEX

  • DC Current Gain-Min (hFE):

    200

  • JEDEC-95 Code:

    MS-012AB

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    4

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    300 MHz

MAT14ARZ-R7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a 10nF capacitor between the VCC and GND pins to filter out noise.
  • The MAT14ARZ-R7 is factory-calibrated, but you may need to perform a system-level calibration depending on your application. Refer to the datasheet for calibration procedures and consider using an external calibration signal if necessary.
  • The MAT14ARZ-R7 is rated for operation from -40°C to +125°C. However, the device's accuracy and performance may degrade at extreme temperatures. Ensure proper thermal management and consider using thermal shielding or heat sinks if necessary.
  • Yes, the MAT14ARZ-R7 is designed to withstand vibrations up to 10g. However, ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress. Consider using a vibration-dampening material or a shock-absorbing mount if necessary.
  • Common issues include incorrect pin connections, power supply noise, and thermal issues. Check the datasheet for troubleshooting guidelines and consider using a logic analyzer or oscilloscope to debug the issue.
