MAX-M10S-00B - u-blox

Description: GPS Modules u-blox M10 GNSS LCC module, firmware in ROM, SAW filter, LNA

Download MAX-M10S-00B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

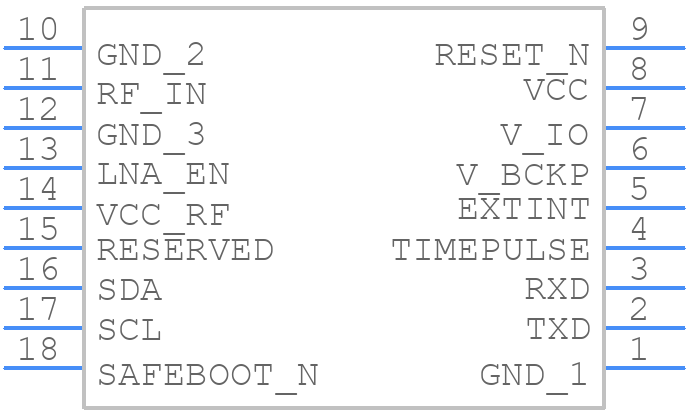

Symbol
MAX-M10S-00B - u-blox - PCB symbol
click to zoom
PCB Footprints
MAX-M10S-00B - u-blox PCB footprint - Other - Other - MAX-M10S-00B-2
click to zoom
3D Models
MAX-M10S-00B - u-blox - 3D model - Other - MAX-M10S-00B-2
click to zoom

MAX-M10S-00B Details

  • Manufacturer Part Number:

    MAX-M10S-00B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    u-blox AG

  • JESD-30 Code:

    R-XDMA-N18

  • Length:

    10.1 mm

  • Moisture Sensitivity Level:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    2.7 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.1 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    9.7 mm

MAX-M10S-00B Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to first apply the power supply voltage (VCC) and then the backup battery voltage (VBACKUP) if used. This ensures that the module's internal voltage regulators are properly initialized.
  • The UART interface on the MAX-M10S-00B module is configured using the AT command set. The default baud rate is 115200, but it can be changed using the AT command 'AT+IPR=<baud_rate>'.
  • The typical current consumption of the MAX-M10S-00B module is around 25 mA in tracking mode and 10 mA in standby mode. However, this can vary depending on the specific use case and configuration.
  • The firmware on the MAX-M10S-00B module can be updated using the u-blox u-center software tool. The tool provides a user-friendly interface for uploading new firmware images to the module.
  • The operating temperature range of the MAX-M10S-00B module is -40°C to +85°C. However, the module's performance may be affected at extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX-M10S-00B Overview

Use the download button to access the MAX-M10S-00B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX-M, or try a keyword search, such as Other Telecom ICs

About u-blox

u-blox is a Swiss company, specializing in advanced positioning and wireless communication technologies. It provides high-performance GNSS (Global Navigation Satellite System) and cellular communication modules, chips, and software for a wide range of industries including automotive, industrial, and consumer electronics. Known for its innovation and reliability, u-blox's products support multiple satellite systems and wireless standards, enabling precise positioning and robust connectivity for applications.
