MAX1030BCEG+ - Analog Devices

Description: Analog to Digital Converters - ADC 10-Bit 300ksps ADCs with FIFO, Temp Sensor, Internal Reference

Download MAX1030BCEG+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

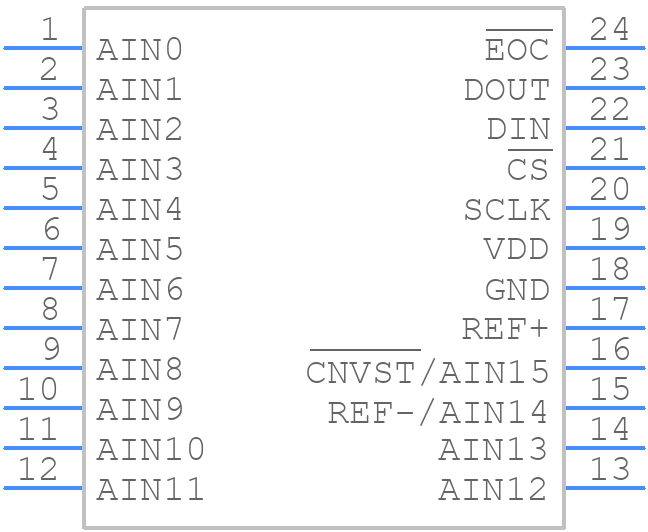

MAX1030BCEG+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1030BCEG+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - E24+1
click to zoom
3D Models
MAX1030BCEG+ - Analog Devices - 3D model - Small Outline Packages - E24+1
click to zoom

MAX1030BCEG+ Details

  • Manufacturer Part Number:

    MAX1030BCEG+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    24-QSOP-150_MIL

  • Package Description:

    ROHS COMPLIANT, QSOP-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    24-QSOP-150_MIL

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2003-06-03

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog Input Voltage-Max:

    2.65 V

  • Analog Input Voltage-Min:

    -0.5 V

  • Converter Type:

    A/D CONVERTER

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    8.64 mm

  • Linearity Error-Max (EL):

    0.0977%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    16

  • Number of Bits:

    10

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.24

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    0.3 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    3.2 mA

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.89 mm

MAX1030BCEG+ Frequently Asked Questions (FAQs)

  • It is recommended to follow a star-grounding configuration, keeping the analog and digital grounds separate, and placing the device close to the power supply. Additionally, ensure that the input and output traces are routed away from each other and from any high-frequency signals.
  • The MAX1030BCEG+ has a thermal pad on the bottom of the package, which should be connected to a thermal plane or a heat sink to dissipate heat. Ensure good thermal conductivity between the device and the heat sink, and consider using thermal interface materials if necessary.
  • A simple RC filter with a 1kΩ resistor and a 10nF capacitor is recommended for most applications. However, the optimal filter configuration may vary depending on the specific noise environment and signal frequency. Consult the application note AN-1071 for more information.
  • Calibrate the device at multiple temperatures using a precision voltage source and a high-accuracy reference. Use the internal calibration registers to store the correction values, and consider using an external temperature sensor to monitor the device temperature.
  • Potential sources of error include offset voltage, gain error, and non-linearity due to capacitor mismatch. These can be mitigated by using a high-accuracy voltage reference, calibrating the device, and ensuring proper PCB layout and component selection.
