MAX11103AUB+ - Analog Devices

Description: 3Msps, Low-Power, Serial 12-Bit ADCs

Download MAX11103AUB+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

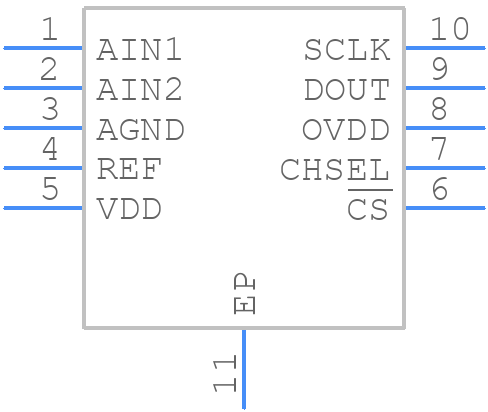

MAX11103AUB+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX11103AUB+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - Max 21-0109_G
click to zoom
3D Models
MAX11103AUB+ - Analog Devices - 3D model - Small Outline Packages - Max 21-0109_G
click to zoom

MAX11103AUB+ Details

  • Manufacturer Part Number:

    MAX11103AUB+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    10-MINI_SO_EP-N/A

  • Package Description:

    3 X 3 MM, ROHS COMPLIANT, UMAX-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    10-MINI_SO_EP-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog Input Voltage-Max:

    3.65 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    3 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    3.3 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

MAX11103AUB+ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the MAX11103AUB+ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog power plane and a dedicated digital power plane.
  • To optimize the performance of the MAX11103AUB+ in noisy environments, use a low-pass filter on the analog input, use a shielded cable for the analog input, and keep the device away from high-frequency noise sources. Additionally, consider using a common-mode filter or a differential amplifier to reject common-mode noise.
  • The maximum sampling rate that can be achieved with the MAX11103AUB+ is 1Msps (million samples per second) in the fast mode, and 500ksps (thousand samples per second) in the normal mode. However, the actual sampling rate may be limited by the system's clock frequency, the analog input bandwidth, and the digital interface.
  • The MAX11103AUB+ does not require calibration. It has an internal calibration circuit that calibrates the device during power-up. However, it's recommended to perform a system-level calibration to ensure optimal performance, which may involve adjusting the gain, offset, and linearity of the analog signal chain.
  • The power consumption of the MAX11103AUB+ depends on the operating mode, clock frequency, and supply voltage. In the fast mode, the typical power consumption is around 12mW at 3.3V supply voltage and 1Msps sampling rate. In the normal mode, the typical power consumption is around 6mW at 3.3V supply voltage and 500ksps sampling rate.
