MAX11105AUT+T - Analog Devices

Description: ADC

Download MAX11105AUT+T Model

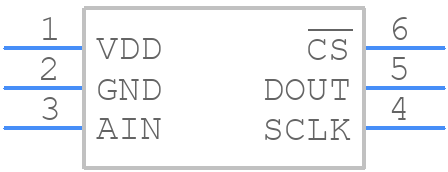

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
MAX11105AUT+T - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6 SOT23-6
click to zoom
3D Models
MAX11105AUT+T - Analog Devices  - 3D model - SOT23 (6-Pin) - 6 SOT23-6
click to zoom

MAX11105AUT+T Details

  • Manufacturer Part Number:

    MAX11105AUT+T

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    6-SOT_23-N/A

  • Package Description:

    2.80 X 2.90 MM, ROHS COMPLIANT, SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    6-SOT_23-N/A

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    2010-06-07

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    3.6 V

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Sample Rate:

    2 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max:

    2.6 mA

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.625 mm

MAX11105AUT+T Frequently Asked Questions (FAQs)

  • The MAX11105AUT+T is a high-speed, high-precision ADC, and as such, it requires careful layout and placement to minimize noise and ensure optimal performance. Analog Devices recommends following a star-grounding scheme, keeping analog and digital grounds separate, and using a solid ground plane to reduce noise. Additionally, the device should be placed away from high-frequency sources and digital signals, and the input traces should be kept short and shielded.
  • The MAX11105AUT+T has an internal calibration mechanism that can be used to achieve high accuracy. However, for optimal performance, external calibration may be necessary. This can be done by applying a known input voltage and measuring the output code, then adjusting the offset and gain registers accordingly. It's also important to ensure that the device is operated within its specified temperature range and that the input signal is properly filtered and buffered.
  • The MAX11105AUT+T has a maximum sampling rate of 1.5Msps, but this can be limited by the input signal bandwidth, the analog input impedance, and the digital output data rate. Additionally, the device's internal clock can be affected by jitter and noise, which can impact the maximum achievable sampling rate. To achieve the highest sampling rate, it's recommended to use a high-quality clock source and to minimize digital noise and jitter.
  • The MAX11105AUT+T has internal overvoltage and undervoltage protection, but it's still important to take precautions to prevent damage to the device. This can be done by using external voltage limiting circuits, such as voltage dividers or clamping diodes, to prevent the input voltage from exceeding the maximum rating. Additionally, the device's power supply should be properly regulated and filtered to prevent voltage droops and spikes.
  • The MAX11105AUT+T has a specific power-up and power-down sequence that should be followed to ensure proper operation and prevent damage to the device. The recommended sequence is to power up the device's analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. When powering down, the sequence should be reversed. Additionally, it's recommended to use a slow power-up and power-down ramp to prevent voltage spikes and transients.
