MAX1110EAP+ - Analog Devices

Description: MAX1110EAP+, 8 bit ADC Differential, SPI, 20-Pin SSOP

Download MAX1110EAP+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

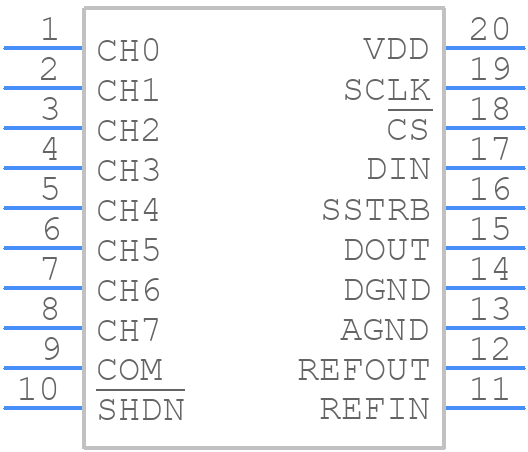

Symbol
MAX1110EAP+ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
MAX1110EAP+ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MAX 20 SSOP
click to zoom
3D Models
MAX1110EAP+ - Analog Devices - 3D model - Small Outline Packages - MAX 20 SSOP
click to zoom

MAX1110EAP+ Details

  • Manufacturer Part Number:

    MAX1110EAP+

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    20-SSOP-5.3_MM

  • Package Description:

    5.30 MM, 0.65 MM PITCH, LEAD FREE, PLASTIC, SSOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    20-SSOP-5.3_MM

  • Country Of Origin:

    Japan, Mainland China, Malaysia, Philippines, Singapore, South Korea, Taiwan, Thailand, USA

  • HTS Code:

    8542.39.00.30

  • Date Of Intro:

    1997-02-23

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog Input Voltage-Max:

    1.024 V

  • Analog Input Voltage-Min:

    -1.024 V

  • Conversion Time-Max:

    55 µs

  • Converter Type:

    ADC, SUCCESSIVE APPROXIMATION

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    7.2 mm

  • Linearity Error-Max (EL):

    0.1953%

  • Moisture Sensitivity Level:

    1

  • Number of Analog In Channels:

    8

  • Number of Bits:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY, 2S COMPLEMENT BINARY

  • Output Format:

    SERIAL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP20,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    50 MHz

  • Sample and Hold / Track and Hold:

    TRACK

  • Seated Height-Max:

    1.99 mm

  • Supply Voltage-Nom:

    5.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.29 mm

MAX1110EAP+ Frequently Asked Questions (FAQs)

  • The MAX1110EAP+ requires careful layout and placement to ensure proper operation. It is recommended to follow the layout guidelines provided in the datasheet, including keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources.
  • To optimize the performance of the MAX1110EAP+ in noisy environments, it is recommended to use proper shielding, filtering, and grounding techniques. Additionally, consider using a low-pass filter on the analog input signals and ensuring that the power supply is well-regulated and decoupled.
  • The maximum sampling rate of the MAX1110EAP+ is 1.5Msps (megasamples per second), but this can be affected by the clock frequency, analog input bandwidth, and other system-level factors. It is recommended to consult the datasheet and application notes for more information on achieving the highest possible sampling rates.
  • The MAX1110EAP+ does not require calibration, as it is a self-calibrating ADC. However, it is recommended to perform a system-level calibration to ensure that the ADC is operating within the desired specifications. This can involve adjusting the reference voltage, gain, and offset to optimize the performance of the ADC in the specific application.
  • The power consumption of the MAX1110EAP+ varies depending on the operating mode, clock frequency, and other factors. According to the datasheet, the typical power consumption is around 15mW at 1.5Msps, but this can be reduced to around 5mW in low-power mode. It is recommended to consult the datasheet and application notes for more information on power consumption and power-saving techniques.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

MAX1110EAP+ Overview

Use the download button to access the MAX1110EAP+ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like MAX11, or try a keyword search, such as Analog to Digital Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
